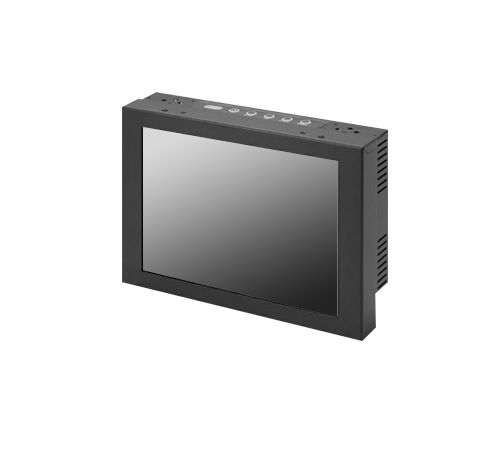

10.4" Military Grade, IP65 Front Chassis LCD, 5-Wire Resistive Touch w/ VGA, HDMI, DVI, RS232 (Remote Control) (Model: EMCH1040HB-TR)

Military Grade, IP65 Front Chassis, 10.4" LCD Monitor, 1024x768, LED-1000nits, VGA, WV(178°/178°), WT(-30~70C) Built-In 5-Wire Resistive Touch, I/O: VGA, HDMI, DVI, RS232(Remote Control)

Military Grade, IP65 Front Chassis, 10.4" LCD Monitor, 1024x768, LED-1000nits, VGA, WV(178°/178°), WT(-30~70C) Built-In 5-Wire Resistive Touch, I/O: VGA, HDMI, DVI, RS232(Remote Control)

Inquiry/Quote Request
EMCH1040HB-TR
  • Overview
  • Specifications
  • Download
The iTech EMCH1040HB-TR is a rugged 10-inch military-grade chassis LCD monitor engineered for demanding defense, industrial, and field applications. Designed with an IP65 front panel, high-brightness display, and durable touch interface, this compact solution ensures reliable performance in harsh and mission-critical environments. Its robust construction, wide operating temperature range, and versatile mounting options make it suitable for command centers, vehicle installations, and tactical field operations where durability and clarity are essential.


Features:
  • Modular mechanical design allows for flexible product configurations and simplifies maintenance.
  • 5-Wire Resistive touch screen supports interactive applications.
  • Auto-brightness sensor available, enabling optimal visibility in both day and night environments.
  • I/O: VGA, HDMI, DVI, RS232(Remote Control)
  • Complete custom design/solution for OEM customers
  • RTCA/DO-160 (environmental, temperature, vibration, humidity, EMC, etc.)
  • MIL-STD-461 (EMI/EMC)
  • Compliance CEMILAC's some of test requirements
  • MIL-STD-810 is a Subset of CEMILAC Requirements
    • Method 500.6: Low Pressure (Altitude)
    • Method 514.8: Vibration
    • Method 516.8: Shock
    • Method 507.4: Humidity
    • Method 501.7/502.7: High/Low Temperature
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4:3
Size 10.1" viewable diagonal area
Active Area 212.48(H) x 160.4(V) mm
Pixel Pitch 0.2055(H) x 0.2055(V) mm
Native Resolution 1024(H) x 768(V)
Colors 16.2M
Brightness 1000
Contrast 100 : 1
Response Time ≤ 25 ms
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA , 1 x HDMI , 1 x DVI , 1 x RS232 , 1 x PC, Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Power 9~36V DC
POWER CONSUMPTION
Operation / Power Saving 18 watt , < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity -30°C ~ 70°C (-22°F ~ 158°F), 10%~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F), 10%~ 90% (no condensation)
DIMENSIONS
Physical -
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 3.5 Kgs/4.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
