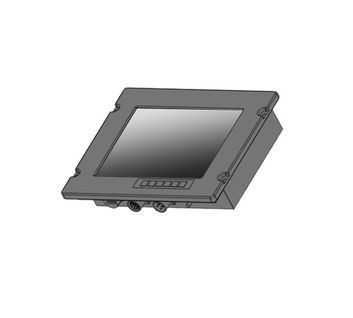

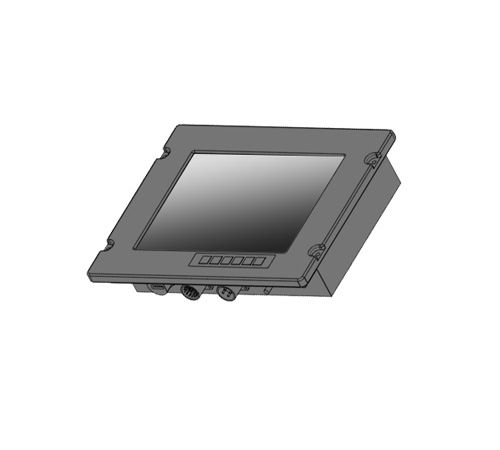

10.4" Fully IP65 Stainless Steel Chassis LCD Monitor, 1000nits, Wide-Temp w/ 1xVGA, 1xHDMI (Military Connector) (Model: Nmil-1040HB-H)
Fully IP65 stainless steel chassis with aluminum front frame 10.4" IP65 LCD Monitor, 1024x768, 1000nits, Black Powder Coating, Support Wide-Operating Temperature, Panel Mount, Waterproof, I/O: 1x VGA, 1x HDMI (Military Connector)
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 10-Inch Fully IP65 Stainless Steel Chassis LCD Monitor (NMIL-1040HB-H) from iTech is engineered for demanding industrial and outdoor environments where durability, high brightness, and reliable performance are essential. Built with a rugged stainless steel chassis and IP65-rated protection on all sides, this monitor withstands moisture, dust, and harsh operating conditions. Its 1000-nit high-brightness display ensures excellent visibility even in direct sunlight, making it ideal for marine, military, food processing, manufacturing, and washdown applications. |
Features: |
|
| LCD Panel | LCD Size | 10.4” Active matrix TFT LCD |
| LCD Grade | Native military grade LCD module | |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4 : 3 | |
| Brightness | Enhance up to 1000 cd/m2 | |
| Contrast Ratio | 1000 : 1 | |
| Viewing Angle | 80 / 80 / 70 / 70 | |
| Display Colors | 16.7 Million colors | |
| Protected Glass | Protected Glass | Built in protected glass |
| Glass Type | Strengthen protected glass | |
| Mechanical | Front Bezel | Military grade 64430 aluminum alloy with anti-corrosion treatment |
| Chassis Material | Rugged heavy-duty stainless steel with anti-corrosion treatment | |
| Mounting | Front mount, Panel mount |
|
| Color | Color Finish | Olive drab cadmium color |
| Control Key | OSD Control Buttons | On-Off, MENU, AUTO, UP, DOWN |
| I/O Port | VGA | 1 x VGAwith MIL-D-38999 IP-67 Water-Proof Military Circular connector |
| HDMI | 1 x HDMI with IP-67 water-proof Military Circular Connector | |
| DC | 1 x DC with MIL-D-38999 Mil. Circular Connector | |
| Dimension | Exclude Bezel | 302 (W) x 246 (H) x 59 (D) |
| Include Bezel | 302 (W) x 246 (H) x 71 (D) | |
| Power Input | DC Input | DC9~36V wide power Input |
| AC Input | Optional AC90~264V or external adapter | |
| Power Consumption | Power Consumption | Less than 20 Watts |
| Environmental | Operating Temperature | 0 ~ +50°C |
| Storage Temperature | -30 ~ +80°C | |
| Humidity | 5 ~ 95% R.H. at 30 deg. C, non-condensing | |
| Shock | MIL-STD-810F compliant | |
| Vibration | MIL-STD-810F compliant | |
| Salt Fog | MIL-STD-810F compliant | |
| RoHS | Compliant | |
| EMC/EMI | CE | Approval |
| FCC | Approval | |
| MIL-STD-461 | MIL-STD-461 compliant Note : if you request test report, test cost will be required. |
