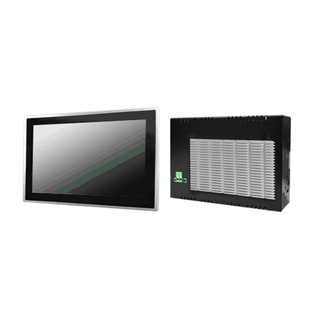

Zero Bezel Panel Mount, 7" LCD monitor, 800 x 480 LED 1000 nits, VGA input, wide view angle and wide temperature, Intel® Celeron J1900 (Model: EPMW0700WTWVHB-J-F)

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Intel® Atom Baytrail-M/D Chipset
Intel® Celeron J1900
Single Channel DDR3L 1333 MHz SDRAM
1 x HDMI, 1 x COM, 2 x USB, 2 x LAN

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 7" viewable diagonal area
	Active Area / Pixel Pitch	152.40(H) x 91.44(V) mm / 0.1905(H) x 0.1905(V) mm
	Native Resolution / Colors	800(H) x 480(V) / 262 K
	Brightness / Contrast	1000 cd/m2 (typ) / 700 : 1
	Response Time	< 30 ms
	Viewing Angle (typical)	H. 160° (- 80° ~ + 80° ) , V. 160° (- 80° ~ + 80° )
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
System	CPU	Intel® Celeron J1900
	BIOS	AMI
	System / Graphic Chipset	Intel® Atom Baytrail-M/D Chipset
	System Memory	Single Channel DDR3L 1333 MHz SDRAM
	HDD	2 x SATA
	I/O port	1 x HDMI
		2 x USB 3.0
		1 x COM (RS232)
		2 x LAN
	Expension	1 x Mini PCI-e
Power	Power Input	12V DC-IN (Lockable connector)
Power	Power Consumption	45 Watt, <1 Watt
Operating Condition	Temperature / Humidity	-30°C ~ 80°C (-22°F ~ 176°F) , 10% ~ 90% (no condensation)
Dimensions	Physical	Please refer to Drawing
Dimensions	Carton	W x H x D = TBD
