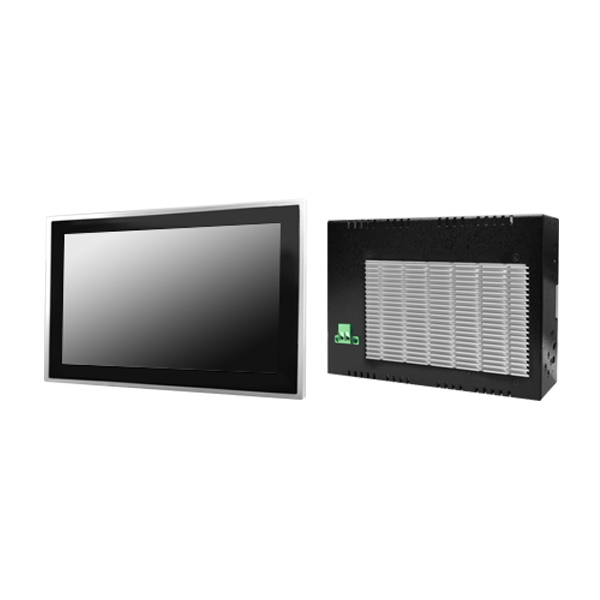

Zero Bezel Panel Mount, 7" LCD Monitor 800 x 480, LED 400 nits, VGA input, wide view angle and wide temperature, Intel® Core i7 Processor, with PCAP Touch (Model: EPMW0700WTWV-i7-FPCT)

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Intel® Core i7 Processors
Intel® 8th Gen (Whiskey lake-U)
Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
2 x Display Port, 4 x USB, 2 x LAN

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 7" viewable diagonal area
	Active Area / Pixel Pitch	152.40(H) x 91.44(V) mm / 0.1905(H) x 0.1905(V) mm
	Native Resolution / Colors	800(H) x 480(V) / 262 K
	Brightness / Contrast	400 cd/m2 (typ) / 700 : 1
	Response Time	< 30 ms
	Viewing Angle (typical)	H. 160° (- 80° ~ + 80° ) , V. 160° (- 80° ~ + 80° )
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
System	CPU	Intel® Core i3 / i5 / i7 Processors
	BIOS	Intel® 8th Gen (Whiskey lake-U) Core MCP Processors
	System / Graphic Chipset	SoC
	System Memory	Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
	HDD	2 x SATA
	I/O port	2 x Display port
		4 x USB 3.0
		2 x LAN
		1 x Power
	Expansion	N/A
Power	Power Input	12V DC-IN (Lockable connector)
Power	Power Consumption	45 Watt, <1 Watt
Operating Condition	Temperature / Humidity	-30°C ~ 80°C (-22°F ~ 176°F) , 10% ~ 90% (no condensation)
Dimensions	Physical	Please refer to Drawing
Dimensions	Carton	W x H x D = TBD
