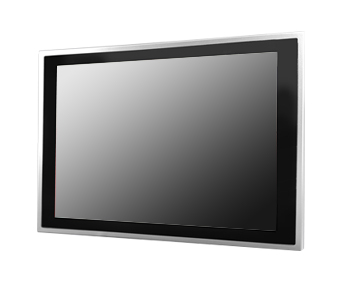

Zero Bezel Panel Mount, 10.4" LCD Monitor 1024 x 768, LED 450 nits, VGA input, wide view angle and wide temperature (Model: EZPM1040XWTWV)

Zero Bezel Panel Mount, 10.4" LCD Monitor 1024 x 768, LED 450 nits, VGA input, wide view angle and wide temperature (Model: EZPM1040XWTWV)

Zero Bezel Panel Mount, 10.4" LCD Monitor 1024 x 768, LED 450 nits, VGA input, wide view angle and wide temperature (Model: EZPM1040XWTWV)

Main Feature

  • Modular construction for more flexibility in terms of product configuration as well easy maintenance
  • Optional build-in touch screen for interactive application
  • VGA connector with optional AV,SV,AV-Looping
  • Available with auto-brightness sensor offers application in day and night
  • Complete custom design/solution for OEM customers
Inquiry/Quote Request
EZPM1040XWTWV
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 210.4(H) x 157.8(V) mm / 0.2055(H) x 0.2055(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 M
Brightness / Contrast 450 cd/m2 (typ) / 600 : 1
Response Time < 25 ms
Viewing Angle (typical) H. 178° (- 89° ~ + 89° ) , V. 178° (- 89° ~ + 89° )
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Aut° Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 17.5 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity -30° C ~ 70° C (-22° F ~ 158° F) , 10% ~ 90% (no Condensation)
Storage Condition Temperature / Humidity -30° C ~ 80° C (-22° F ~ 176° F) , 10% ~ 90% (no Condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 3.5 Kgs / 4.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

OPTIONS:

  • Touch: Projected Capacitive Touch and Protected glass
  • Video/TV: Video/TV, SV + AV, SV + AV + AV_Looping, SV + AV + TV
  • Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
  • Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
