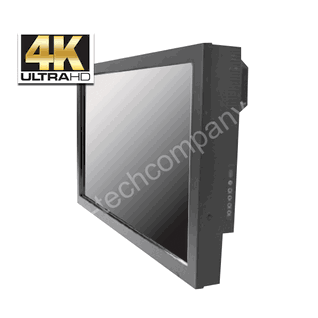

Chassis/VESA mount Industrial Professional 42" LCD monitor, 3840x2160, LED-350nits, VGA+DP+HDMI, AC-IN w/Built-in PWR (Model: ECHW4200-4K)

Chassis/VESA mount Industrial Professional 42" LCD monitor, 3840x2160, LED-350nits, VGA+DP+HDMI, AC-IN w/Built-in PWR (Model: ECHW4200-4K)

Chassis/VESA mount Industrial Professional 42" LCD monitor, 3840x2160, LED-350nits, VGA+DP+HDMI, AC-IN w/Built-in PWR (Model: ECHW4200-4K)

Main Feature

  • 4K resolution for Ultra HD image quality and performance
  • Optional build-in touch screen functionality and fully integrated multi-touch available
  • Modular design for flexible integration and easy maintenance
  • Rugged aluminum chassis for harsh environments and demanding applications
  • A brightness sensor to automatically adjust the screen for day and night application
  • Low power consumption
  • VGA connector with optional AV, SV, and AV-Looping
  • Energy-efficient LED backlight and fanless design for quiet operation
  • Sunlight readability technology for outdoor applications
  • Available custom designs for Open frame/Panel Mount/Stainless steel as options
Inquiry/Quote Request
ECHW4200-4K
  • Overview
  • Download
  • Contact Sales

Specifications:

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 42" viewable diagonal area
Active Area / Pixel Pitch 919.29(H) x 517.104(V) mm / 0.0798(H) x 0.2394(V) mm
Native Resolution / Colors 3840(H) x 2160(V) / 1.073B
Brightness / Contrast 350 cd/m2 (typ) / 5000 : 1
Response Time ≤ 9.5 ms (G-to-G)
Viewing Angle (typical) H.178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA, 1 x HDMI, 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 141.25 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certifcation   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 30.5 Kgs / 32.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ

TBD (Sets , By pallet)




Options:

• Touch: PCAP, Capacitive, SAW, Infrared, and Protected glass
• Video/TV: SV + AV, SV + AV + AV_Looping, SV + AV + TV
• Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
• Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
