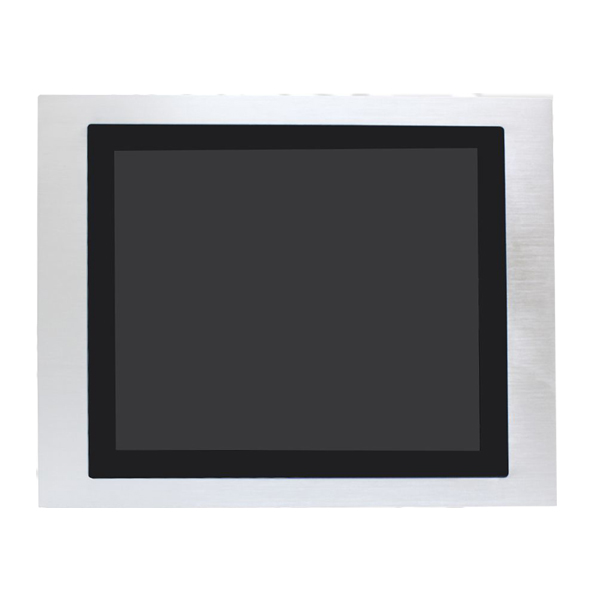

19" Aluminum Front Bezel True Flat Touch Panel PC, True flat PCT touch screen , J1900, 1 x VGA , 1 x RS232 , 4 x USB, 1 x LAN, 1 x 12V DC in , VESA mounting & panel mount , resolution : 1280 x 1024 dpi (Model: KPC1900-J-FPCAP)

System
CPU	Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor (On Board)
Memory	1 x 204pin DDR3L SODIMM up to 8GB
H/W Monitor
Watchdog Timer	Watch Dog Timer 256 Level
I/O Ports
RS232	1
GLAN	1
USB	4x USB 2.0
VGA	1
Line-Out / Mic In	1
Storage
Storage	1 x SATA 2.0 2.5” HDD/SSD
Expansion
Mini-PCIe	1 x Full-size (one w/ mSATA)
Power Requirement
Power Input Voltage	DC in 12V
Touch Screen
Touch screen	PCAP
OS support
Win Pro 7,8,10 ; Embedded Win 7, 8,10

Display
Size		19" TFT (4:3)
Resolution		1280 x 1024
Colors		16.7M
Luminance ( cd/m2)		250
Contrast Ratio		1000:1
View Angle ( H / V )		170/160
Mechanical & Environmental
Operation Temp	0 ~ 45°C
Storage Humidity	10 ~ 90%, non-condensing
Mount	Clip mount, Panel mount & VESA mounting(100X100mm)
Dimension (W x H x D mm) &Weight	528 x 414.4 x 71.8 (15kg)
Optional
RS232	2
External antenna	1 or 2
Waterproof Sponge	1
IP66 front Bezel with Oring	1
Clip	10
No Touch Screen	1
PCIe x 1 Slot	1
Second Lan with 2 Memory slot (UP to 8G)	1

Optional High Brightness Panel
Resolution	1280 x 1024
Color	16.7M	16.7M	16.7M	16.7M
Luminance(cd/m2)	1600	1000	1000	800
Contrast Ratio	1000 : 1	2000:1	1000:1	1000:1
Viewing Angle (H/V°)	170/160	178/178	160/170	170/160
