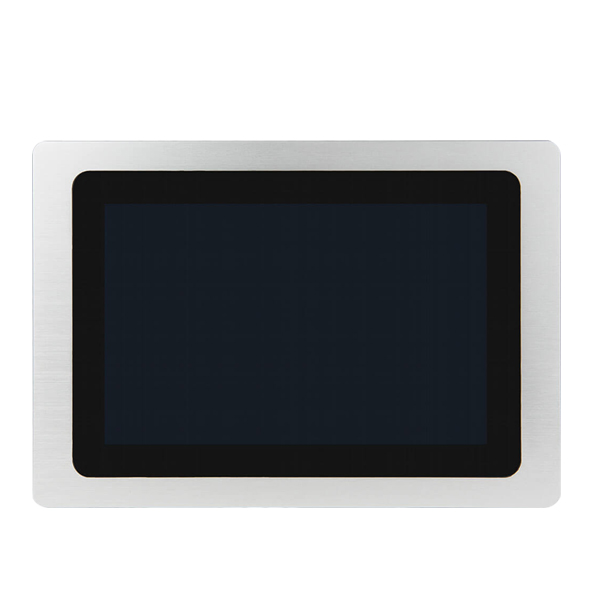

10.1" 4th gen Intel Core True Flat Touch Panel PC PCAP Intel i5 CPU and 4 x USB, 1 x HDMI , 2 x LAN, 1 x RS232, 1 x VGA I/O ports. (Model: KPC1010-i5-FPCAP)

System
CPU	4th Gen Intel Core i5 4300U CPU (On Board)
Memory	1 x 204-pin DDR3L SODIMM up to 8GB
H/W Monitor
Watchdog Timer	256-Level Watchdog Timer
I/O Ports
RS232	1
GLAN	2
USB	4
VGA	1
HDMI	1
Storage
Storage	1 x SATA 2.0 2.5” HDD/SSD
Expansion
Mini-PCIe	2 x Full-size (one w/ mSATA) 1 x Half-size
Power Requirement
Power Input Voltage	DC in 12V /19V /24 V
Touch Screen
Touch screen	PCAP
OS support
Win 7 Pro , Win 8 Pro , Win 10 Pro, Embedded Win 7, Win 8,10

Display
Size		10.1" TFT (16:9)
Resolution		1280 x 800
Colors		262K
Luminance ( cd/m2)		300
Contrast Ratio		13000 : 1
View Angle ( H / V )		160/160
Mechanical & Environmental
Operation Temp	0 ~ 45°C
Storage Humidity	10 ~ 90%, non-condensing
Mount	Clip mount, Panel mount & VESA mounting(75X75mm)
Dimension (W x H x D mm) &Weight	297 x 215 x 57.5 (4kg)
Optional
RS232	1
External antenna	1 or 2
Waterproof Sponge	1
Clip	8
No Touch Screen	1

Optional High Brightness Panel
Resolution	1280x800
Color	16.7M
Luminance(cd/m2)	1000
Contrast Ratio	900 : 1
Viewing Angle (H/V°)	160/160
