ERMW2400-TR

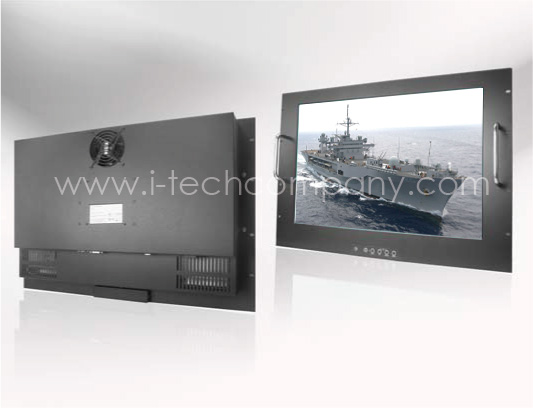

Rack Mount, Wide 24" LCD monitor, 1920 x 1200, 400 nits with Resistive Touch. (Model: ERMW2400-TR)

Rack Mount, Wide 24" LCD monitor, 1920 x 1200, 400 nits with Resistive Touch. (Model: ERMW2400-TR)

ERMW2400-TR
  • Overview
  • Download

Features:

  • 1920 x 1200 Native resolution, 400 cd/m2 brightness, 178° horizontal/vertical viewing angles.
  • Modular mechanism design provides flexible product configuration and easy maintenance.
  • Optional to built-in touch screen for interactive application.
  • Optional panel with ultra high brightness and super dynamic contrast, along option with auto-brightness sensor offers application in day and night.

Specifications:


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 24" viewable diagonal area
Active Area / Pixel Pitch 5184(H) x324.0(V) mm / 0.27(H) x 0.27(V) mm

Native Resolution / Colors

1920(H) x 1200(V) / 16.7 Million
Brightness / Contrast 400 cd/m2 (typ) / 1000 :1
Response Time ^ 6 ms (G-to-G)
Viewing Angle (typical) H. 178° (- 89° ~ + 89°) , V 178°(- 89° ~ + 89°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 3W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x AC Inlet
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 100 x 100 mm)
Power Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 110 watt, < 5 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical With Base(W x H x D): TBD
Without Base(W x H x D): 650.0 x 430.0(10U) x 94.0 (mm)
Carton W x H x D = TBD
Weight N.W. / G.W. 14.0 Kgs/15.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch

SV + AV + AV_Looping

High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
