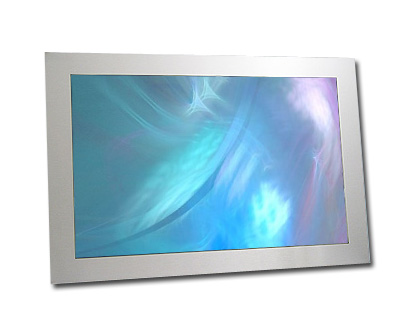

| ESPM Series: Front NEMA4/IP65 Industrial Stainless Steel Panel Mount Metal (3mm) Housing LCD Monitor (Optional Integrated Touchscreen) |
| |
Auto Power on and Video signal on/off
The LCD is always on whenever there is a power, this functionality eliminates the need to manual turn on the LCD. Also, you can control the LCD backlight on/off by video signal. LCD backlight will shut down when no video signal, but LCD backlight will wake up when the video signal is back on. |
| |
Features Highlights: |
| |
- 1. Stainless steel 3mm Panel Mount (Optional for Front AR Glass or Vandal Resistant glass)
- 2. NEMA4/ IP65 Front Anti Water proof and Dust Proof
- 3. Optional for Resistive/ Capacitive/ SAW/ IR/ Projective Capacitive Touch screen
- 4. Auto Video Signal ON / OFF Auto Always Power On
|
| |
  |
- 1. For easy installation with Clamps mount
- 2. VESA Mounting Hole Pattern
- 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
- 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
- 5. Optional for RS232 Remote Control Protocol: Command Code to set system
- 6. Side OSD buttons can prevent unnecessary setting changes
|
 |
|
Features: |
- Modularize mechanical design provides flexible product configuration and easy maintenance.
- Optional build-in touch screen for interactive application.
- Available with auto-brightness sensor offers application in day and night
- VGA connector with optional AV.SV.AV-Looping.
- Complete custom design/solution for OEM customers
|
Specifications: |
| Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low refection coating |
| Aspect Ratio / Size |
Wide / 27" viewable diagonal area |
| Active Area / Pixel Pitch |
597.89(H) x 336.31(V) mm / 0.3114(H) x 0.3114(V) mm |
| Native Resolution / Colors |
1920(H) x 1080(V) / 16.7M |
| Brightness / Contrast |
300 cd/m2 (typ) / 1000 : 1 |
| Response Time |
≤ 5 ms |
| Viewing Angle (typical) |
H.170o (- 85o ~ + 85o) , V. 160o(- 80o ~ + 80o) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
| Input Sources |
PC System |
Signal |
Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
| |
Sync |
Separate Sync, Composite Sync, Sync On Green |
| |
Frequency |
Fh : 30 - 82Khz , Fv : 50 -75Hz |
| Audio System |
2W speaker x 2 |
| Input Terminals |
1 x VGA, 1 x HDMI, 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
| Convenient Features |
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) |
| |
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
| Power |
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz |
| Power Consumption |
Operation / Power Saving |
42.5 watt , < 1 watt (Support DPMS) |
| Operating Condition |
Temperature / Humidity |
0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation) |
| Storage Condition |
Temperature / Humidity |
- 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation) |
| Certification |
|
FCC , CE |
| Dimensions |
Physical |
Please refer to Drawing |
| Carton |
W x H x D = TBD |
| Weight |
N.W. / G.W. |
12 Kgs / 13.5 Kgs |
| Container Loaded |
20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
| Options |
Touch |
Video / TV |
Enhanced Panel |
Others |
| Resistive touch |
SV + AV |
Panel with LED backlight |
Digital Signage(Stand alone) |
| Capacitive touch |
SV + AV + AV Looping |
High brightness panel |
Networking Digital Signage |
| SAW touch |
SV + AV + TV |
Wide Temperature |
Motion Sensor |
| Infrared touch |
|
Sunlight Readable |
Light Sensor |
| Protected glass |
|
|
Auto-Dimming |
|
| |
LCD Options |
 |
|
LED Backlight |
|
| |
| Introducing LED backlight options for monitors for energy efficiency and a brighter screen. |
| The benefits of LED-backlit LCDs include: |
- Longer operating life
- Low power consumption
- Environmental friendliness (Mercury [Hg] free)
- Greater resistance to mechanical shock (no glass tubes)
- Quicker illumination to stable brightness
- Wide dimming ratio (to <1%)
- Reduction of electronic noise (low DC drive voltage)
|
|
| |
 |
|
TouchScreen |
|
| |
| Our LCD has a wide selection option to choose which touchscreen.technology suits for you. |
|
| |
Four-Wire
Resistive |
Five-Wire Resistive |
Pen Touch |
Capacitive |
Surface Wave(Saw) |
Infrared Touch (Ir) |
| PRODUCT SIZE |
1.7" - 24" |
10.4" - 24" |
15" - 19" |
12" - 24" |
10.4" - 30" |
10.4" - 42" |
| TOUCH LIFE |
1 - 2 million
touches |
30 - 35million
touches |
100 million
touches |
100 million
touches |
50 million
touches |
Long-term reliability |
| SCRATCH RESISTANCE |
Hard Coated |
Hard Coated |
Hard Coated
(SiO˛) |
Hard Coated
(SiO˛) |
Glass Overlay
Moh's hardness rating of 7 |
Glass Overlay
Moh's hardness rating of 7 |
| CONTAMINANT RESISTANCE |
Resists moisture, dirt, vinegar, ammonia based food products and cleansers |
Resists moisture, dirt, vinegar, ammonia based food products and cleansers |
Resists moisture, dirt, vinegar, ammonia based food products and cleansers |
Resists moisture, dirt, vinegar, ammonia based food products and cleansers |
Resists moisture, dirt, vinegar, ammonia based food products and cleansers |
Resists moisture, dirt, vinegar, ammonia based food products and cleansers |
| INPUT METHOD |
Finger, Gloved Hand, Stylus |
Finger, Gloved Hand, Stylus |
Stylus Pen |
Finger |
Finger, Gloved Hand, Soft pliable stylus |
Finger, Gloved Hand, Stylus |
| CONTROLLER |
USB, RS232 |
USB, RS232 |
USB, RS232 |
USB, RS232 |
USB, RS232 |
USB, RS232 |
|
|
|
| |
|
| |
 |
|
VIDEO Input |
|
| |
| For Video inputs options: |
- DVI
- DVI+HDMI
- SVideo+AV
- SVideo+AV+DVI
- AV+Looping
- DVI+AV+Looping
- HD-SDI
|
|
|
| |
|
| |
 |
|
Optical Bonding |
|
| |
- Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
- Optical Bonding has a lower cost than most other competing technologies.
- Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.
|
|
|
| |
|
| |
 |
|
RS-232 Remote Control |
|
| |
| RS-232 Option for LCD/LED monitors. |
| |
|
| |
|
| |
 |
|
9-36V DC Input |
|
| |
| iTech offers a selection of DC input from 9V to 36V. |
|
|
| |
|
| |
 |
|
Light Sensor and Motion Sensor |
|
| |
| iTech LCD offers Light and Motion Sensor |
| |
|
|
