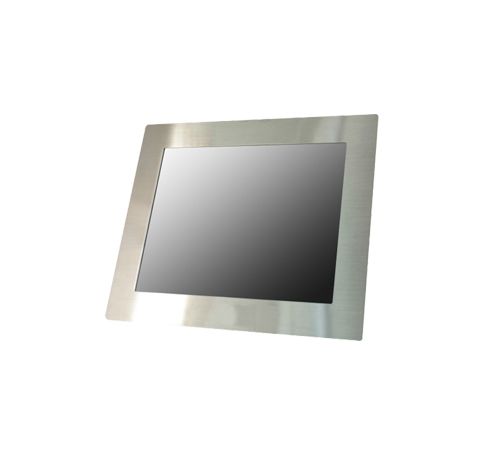

19" 1000nits Front IP65 3mm Stainless-Steel Front Bezel Panel Mount LCD w/ VGA+DVI+HDMI, PCAP Touch (Model: ESPM1900HB-PCT10)
Front IP65 / Panel Mount / 19" TFT 1280x1024 / 1000 nits LED / VGA+DVI+HDMI Signal Input / PCAP Touch with USB Controller / Front Auto Light sensor / Side OSD / DC 12V Power Input / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The ESPM1900HB-PCT10 is a 19-inch stainless steel panel mount LCD monitor engineered for demanding industrial and commercial applications. Designed with a sleek stainless housing and IP65-rated front panel, it offers resistance to water, dust, and corrosion—making it ideal for environments like food processing plants, clean rooms, and manufacturing floors. With its high brightness 1000 nits display and projected capacitive (PCAP) touchscreen, this monitor ensures reliable visibility and intuitive operation even in challenging lighting conditions. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 19.0-inch TFT LCD |
| Screen Diagonal | 19.0-inch |
| Active Display Area (mm) | 376.32 (H) x 301.06 (V) |
| Pixel Pitch (mm) | 0.294 (per one triad) x 0.294 |
| Number of Pixels | 1280 x 3(RGB) x 1024 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M colors (RGB 6-bit + Hi-FRC) |
| Brightness (cd/ni) | 1000 cd/m |
| Viewing Angle(Typ.) | 85 / 85 / 80 / 80 ( R/L/U/D) |
| Signal Connector | 15 PIN D-Sub,DVI-D,HDMI |
| Power Source | DC 12V |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -20 ~ +80°C |
| Storage Temperature | -10 ~ +70°C |
| Plug & Play | VESA DDC 1/2B |
| Touch Type | PCAP Touch with USB Controller |
