42U Server Rack Cabinet Enclosures w/ 42" deep. (Model: UR6042)

SR-6042
  • Overview
  • Specifications
  • Download
Product Discontinued. Contact us at Info@iTechLCD.com for Replace items.



UR 6042 Ultra Rack UR Series
FEATURES
42U 42" Deep Server Rack Enclosure w/Sides Black
80"H x 24"W x 42"D
Fully Perforated mesh Front and Rear door

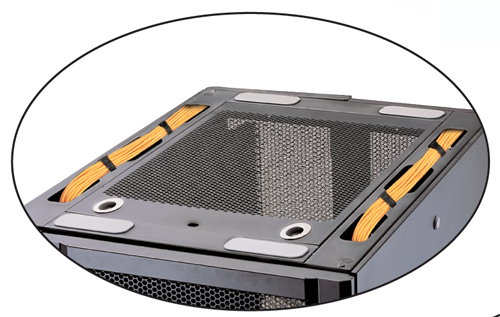

Perforated Roof Top Features Eight 5.5" x 2" cutouts for cable entry
New Feature: Split Side Panel Doors
Lockable front & Rear doors and side panels
Guaranteed Compatibility w/Dell, HP, SUN & IBM
Heavy duty framework holds 2500lbs
Unit Markings at front & Rear
Includes Caster base and Leveling feet


Compatibility Critical Advance Cooling Efficient Cable Management Safe Environment Optional Accessories

    Compatibility
Description
Universal Storage
The UR Series rack provides an ideal equipment enclosure, environment, designed around universal standards, for the compatible mounting of both OEM manufactured servers, from the leading vendors such as IBM, HP, Dell and Sun , as well as all 19" rack mountable solutions.
Manufacturer Series
AppleTM XserveTM
DELLTM PowerEdgeTM
DELLTM PowerVaultTM
HPTM ProLiantTM
IBMTM xSeriesTM
SUNTM Sun Fire TM
SUNTM Sun Fire Blade TM
SUN TM
Sun Fire TM Server
(V120 shown)
IBM TM
xSeries TM
(x305 shown)
DELL TM
PowerEdge TM
(2600 shown)
    Critical Advance Cooling
Description
UR Series provides advance storage flexibility while ensuring that versatile cooling requirements are fully catered to meet these emerging thermal challenges.
UR Series achieves significant cooling efficiency through a number of outstanding design and engineering features. The expanded steel design of all enclosure doors give 80% perforated area that ensures the ultimate air pattern and flow

Photograph

Fully Perforated Door

Fan Top

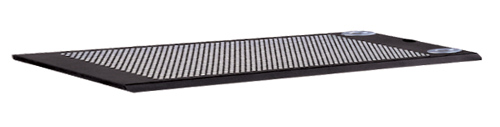

Perforated Top


Fully Perforated Side Panel

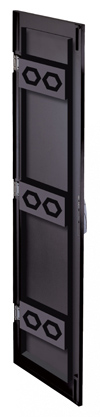

Exhaust Door

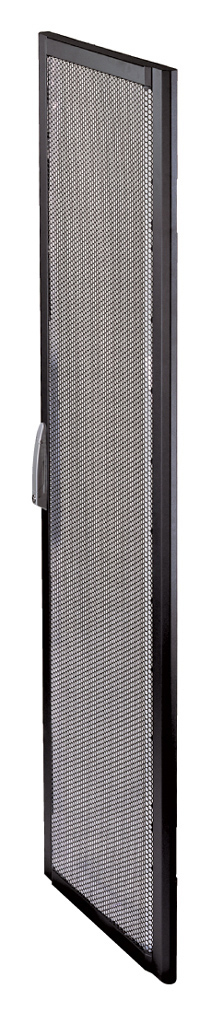

Fully Perforated Front Door

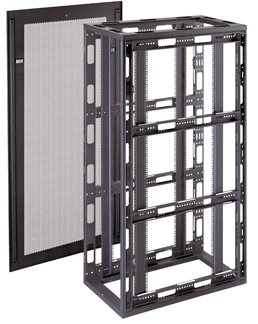

Frame

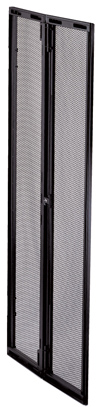

Middle Split Door

    Efficient Cable Management
Description
UR Series provides a simple, versatile cabling pathway within the rack frame. The heavy duty rack framework consisting of end frames, verticals, horizontal panel mounting brackets and reducing cable channels give multi-directional cable pathways and numerous efficient cabling options for easy passage of large quantities of cables.

Photographs

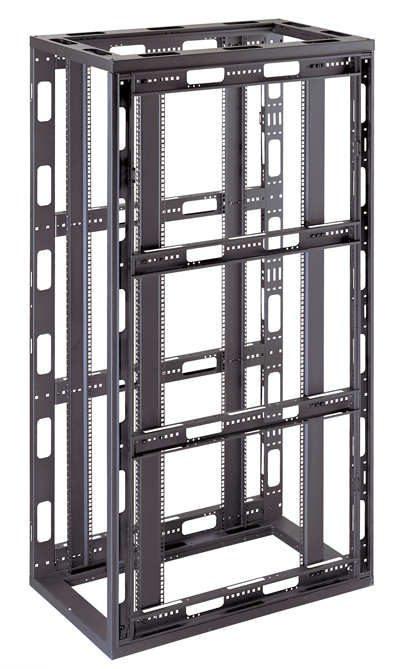

Multi Directional Cable Management System

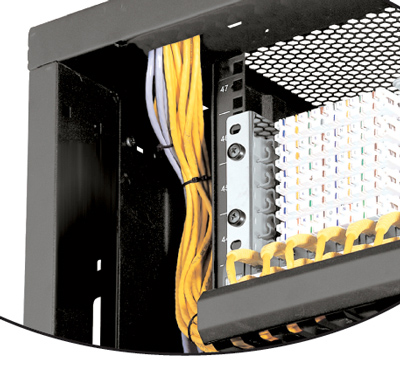

Top

Vertical Cable Channel

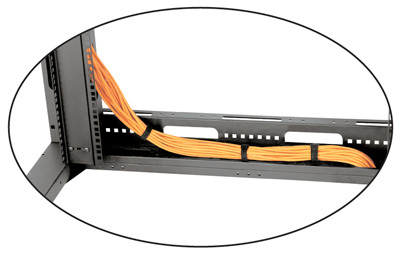

Base

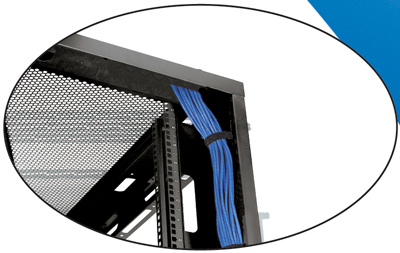

Top

Top

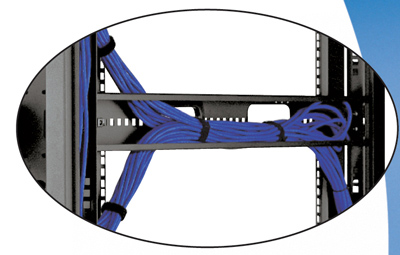

Horizontal Mounting Support

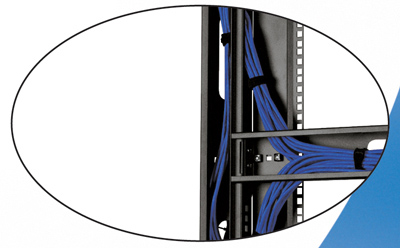

Rear Vertical /w Built -in Cable Tray

    Safe Environment
Safety
Safety is the Key Concern for enclosures and data center environments. The UR Series provides high and structural stability, provides high end structural stability, tested through sequential loading, ensure it provides a safe working environment. For ease of installation and transport the UR series has heavy duty rated castors and is static load rated to 1,000 kgs.

Restricting Access:
UR Series offers high secure solutions for access management. These include a key lockable front door, rear door, and side panels as well as top cover. These locks can be keyed identically or with different keys allowing you to manage security levels.

Photographs
Double Handle Lock Safe Environment Heavy Duty Hinge

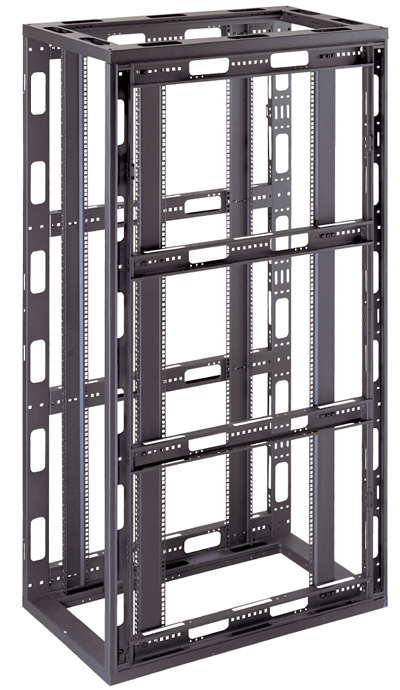

Heavy Duty Framework

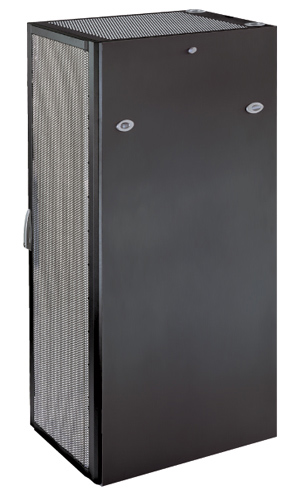

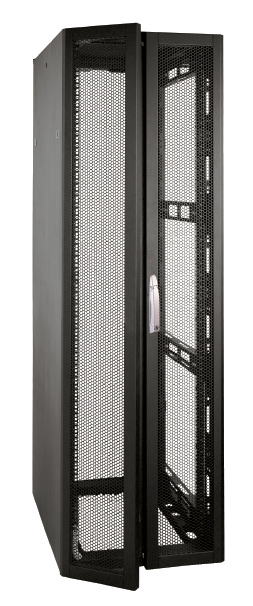

Fully Perforated Middle Split Door Rolls through a 7 foot doorway

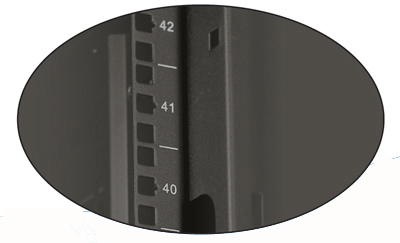

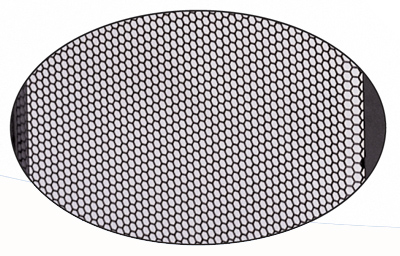

Unit Markings Hexagon Perforated Holes
    Optional Accessories
1U Rackmount Fan Unit

Baying Kit



Grounding Kit



Extension Plinth





Specification
Color Black
Product Height 2020 mm / 80"
Product Width 600  mm / 24"
Product Length 1075 mm/ 42"
Internal Length 1000 mm / 39"
Industry Standards EIA RS310-C
Internal Rack Height 42U
Weight Capacity 2500 lb [1136 kg]
External height 80 inches
Internal width 19 inches
External width 24 inches
Internal depth 39 inches
External depth 42 inches
Shipping dimensions 84.5H x 26.5W x 38.5D inches
Shipping (Package) Weight 286.7 lb [129.73 kg]
Color Flat Black
Key Lock Yes
Package Contents
  • Black 42Ux42" Professional Server Cabinet Rack
  • Sets of keys, 1 for side panels, 1 for front and back doors
  • Bag of 50 cage nuts, 50 mounting screws
  • Vented ceiling panel
  • "L" Shaped Mounting Rails
  • CastersLevelers
  • Grounding Cables x 5
  • Unit Marking at Front and Rear Mounting angles

    Package Option
Photographs

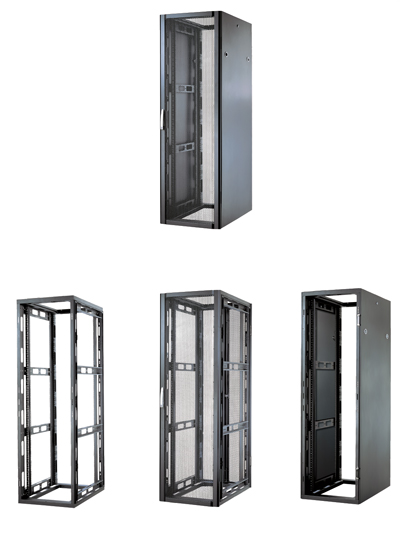

Package Options
  • Standard Package - Full Set
  • Package A -  Basic Frame : w/o doors and side panels
  • Package B -  Basic Frame + Doors : w/o side panels
  • Package C -  Basic Frame + Side Panel : w/o doors
Packing Form
  •  Individual Packing, Kit of 3 Packing and Assembly Packing available.
  • Kit of three packing bundles with toughened paper pallet ensures excellent stability.
  • Ideal for overseas transportation
  • Better safety and protection can be provided
Model No. Width Depth Height
  Overall Effective Overall Effective
mm inch mm inch mm inch mm inch mm inch
UR-6942 42U 600 24'' 975 38'' 900 35'' 2,020 80'' 1,955 77''
UR-6042 600 24'' 1,075 42'' 1,000 39'' 2,020 80'' 1,955 77''
UR-6947 47U 600 24'' 975 38'' 900 35'' 2,242 88'' 2,177 86''
UR-6047 600 24'' 1,075 42'' 1,000 39'' 2,242 88'' 2,177 86''
