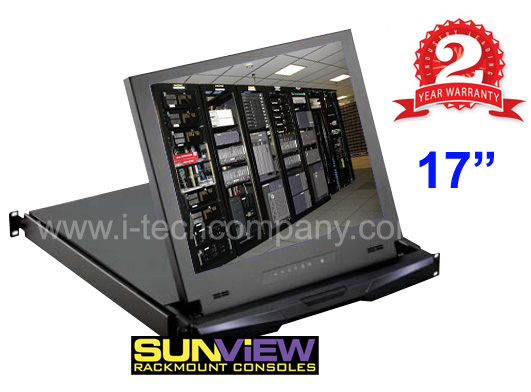

SunView 1U Rackmount SUN System Compatible 17" LCD Monitor Drawer (SUNView: SNP117)

SUN Rackmount LCD Monitor/1U Solaris Compatible 17" Monitor Drawer Optional Composite, S-Video, DVI, & Touch Screen (SunView: SNP117)

SUN Rackmount LCD Monitor/1U Solaris Compatible 17" Monitor Drawer Optional Composite, S-Video, DVI, & Touch Screen (SunView: SNP117)

Overview
Specifications
Download

Drawer Features & Display Benefits:

1U 17" or 19" LCD drawer
Direct Support for SUN Micro 1152 x 900 native resolution
Short depth design of 500mm (19.7")
Depth will suit a 600mm rack application
Sliding LCD allowing LCD to remain open when the rack door is closed
Installation slides for easy, quick installation
Enhanced aesthetics with molded front panel and two point lock

Options:

48V, 24V or 12VDC power

Basic I/O: VGA and DVI-D

Diagram (mm):

Specifications:

LCD Panel
Manufacturer	AUO	AUO
Diagonal size	17" TFT	19" TFT
Max. Resolution	1152 x 900 (Direct)	1280 x 1024 (Native)
Brightness (cd/m2)	250	250
Backlight	CCFL	LED
Colors	16.7M	16.7M
Contrast Ratio (typ)	1000 : 1	1000 : 1
Viewing Angle (H/V)	160° x 160°	170° x 160
Active area (mm)	338 x 270	376 x 301
MTBF (hrs)	50,000	30,000
Signal input	VGA or DVI-D	VGA or DVI-D
Casing Color	Black (RAL 9005)
Weight
Net	10.5 kgs ( 23 lbs )	12.5 kgs ( 28 lbs )
Gross	16.5 kgs ( 36 lbs )	18.5 kgs ( 41 lbs )
Environmental
Operating	0 to 50°C Degree
Storage	-5 to 60°C Degree
Relative humidity	5~90%, non-condensing
Shock	10G acceleration ( 11 ms duration )
Vibration	5~500Hz 1G RMS random vibration
Regulatory	FCC, CE, RoHS
Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 48 Watt, Standby 5 Watt
Product Dimensions
SNP117	442 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch
SNP119	442 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch
Packing Dimensions
SNP117	590 x 687 x 120 mm / 23.2 x 27 x 4.7 inch
SNP119	590 x 687 x 120 mm / 23.2 x 27 x 4.7 inch

Specification
LCD
Panel	TFT 19?LCD Panel
Display Type	TFT
Frequency	60Hz
Contrast Ratio	700 : 1
Viewing Angle	150° (H) x 135° (V)
Resolution	1280 x 1024 (Sync with most SUN Resolution, including 1152 x 900 @ 66 or 76 Hz)
Pixel pitch	0.294(H) x 0.294(W) mm
Response Time	Tr=1.7ms, Tf=6.3ms (Typ.)
Brightness	300 cd/m2
Panel Color	16.7M
Storage Temp.	-25 - 60°C
Operating Temp.	0 - 50°C
Backlight MTBF	20,000 hours under 20 - 30°C

Power Supply
Remote Adapter	110V - 220V AC Input 12V 5A Output
Adapter Size	4.3"(L) x 2.4" (W) x 1.2"(H)
Cable Legnght	6 ft (182cm)
Safety Approval	FCC, CE

Diagram

Ordering Information		Back to Top
Model no.	Description	Net / gross weight
SNP117	1U height, 17" TFT LCD monitor drawer	12kg / 17kg
SNP119	1U height, 19" TFT LCD monitor drawer	13kg / 18kg

	Data Sheet
	User Manual
