Smart Converter programmable module for data conversion between RS232/422/485 and CAN Bus (Model: RS-CAN500)

Smart Converter programmable module for data conversion between RS232/422/485 and CAN Bus  CAN channel: 1channel, CAN baud rate: 10k-1Mbps, Baud rate of serial ports: 2400-921600bps, ESD: supports 8KV, Operating Temp.: -40~+85C, Supply voltage: DC 9-36V

Smart Converter programmable module for data conversion between RS232/422/485 and CAN Bus CAN channel: 1channel, CAN baud rate: 10k-1Mbps, Baud rate of serial ports: 2400-921600bps, ESD: supports 8KV, Operating Temp.: -40~+85C, Supply voltage: DC 9-36V

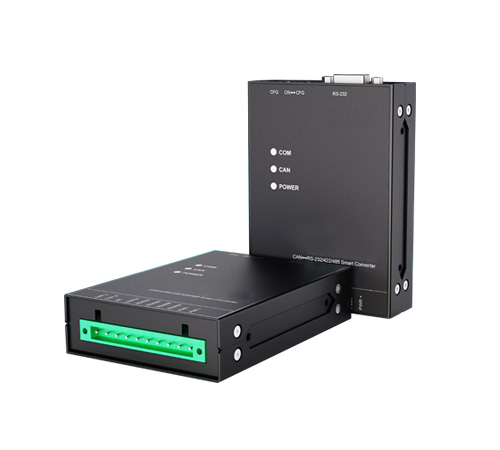

RS-CAN500
  • Overview
  • Specifications
  • Download

Technical Features

The converter is not only focused on its technical details, but also the best choice in terms of safety. Excellent performance of protection creates a safe and strong bridge between devices.

  • Data Conversion - It is a programmable module for communication between RS232/422/485 and CAN Bus. The operation mode of converter can be set via programmable software.
  • High-Speed CAN Channel - CAN protocol is compliant with CAN specifications 2.0A/B. High-Speed CAN channel (ISO11898-1/2) with bit rates from 10K up to 1M bps.
  • 500 Vrms Isolation - There is 3500Vrms isolation on CAN port and ESD protection rating of 8KV can be achieved. so that it can be used in more extreme environments where safety is required.
  • aud Rate Programmable - Supports baud rates from 2400 to 921600 bps for series port and baud rates from 10K-1Mbps for CAN Bus.


Programmable Software

There are many communication parameters of CAN Bus and RS232/485/422 ports. The converter opens most of the parameters, which can be set by users to meet the needs of practical applications.

  • Programmable Software - Conversion Parameters It is mainly used to set conversion method between CAN Bus and serial ports, e.g. the conversion modes, the directions of conversion.
  • Serial Port Parameters - The parameters of serial port can be modified via this interface, for example. Baud Rate, Stop Bit, Data Bit and so on.
  • CAN Parameters - The parameters of CAN Bus can be modified via this interface, for example. CAN ID, Frame Type, Baud Rate and so on.


Applications

CAN Bus and RS232/422/485 are widely used between devices that require real-time data transfer for supervision and control purposes. However, sometimes these devices do not have the same type of ports and communication protocols. Therefore, a smart converter is necessary for communication.
CAN channels 1 channel
CAN baud rate 10k-1Mbps
Serial ports RS232/485/422 software selection
Baud rate of serial ports 2400-921600bps
Configured interface RS232
Data reception capability 1200 frames/second
Data transmission 1200 frames/second
Interface card format conversion Supported
Transparent conversion Supported
Transparent mark-borne conversion Supported
120ohm terminal resistor External
ESD 8KV
Operating temperature -40C ~ 85C
Supply voltage DC 9-36V
Material Metal housing
Dimension 104mm*75.5mm*24.5mm
