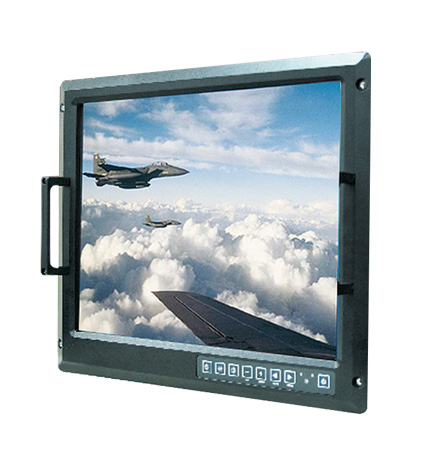

9U Ruggedized Rack Mount Military 19" LCD Anti-Shock and Vibration, 15 pin D-Sub, 5 x BNCs, DVI-D, RS232 (Model: WMRM919-EMI)

9U Ruggedized Rack Mount Military 19" LCD Anti-Shock and Vibration Standard according to MIL810F Operating Temp -20C to 60C,-30°~70°C Storage Temperature 1280X1024, 400 nits,15 pin D-Sub, 5 x BNCs, DVI-D, RS232 (Model: WMRM919-EMI)

9U Ruggedized Rack Mount Military 19" LCD Anti-Shock and Vibration Standard according to MIL810F Operating Temp -20C to 60C,-30°~70°C Storage Temperature 1280X1024, 400 nits,15 pin D-Sub, 5 x BNCs, DVI-D, RS232 (Model: WMRM919-EMI)

Main Feature

  • Anti-Corrosion Housing / Fanless
  • Compliant with MIL-STD-810G/F
  • Flush Rack / Rack Mount Mechanical Design
  • Convenient On-Screen Display Controls
  • AC built-in Power input / Isolation DC 9-36V Power input (Optional)
  • Built-in Light Sensor for auto brightness control
  • Military Grade Power Connector (MIL-DTL-38999/1)
  • EMI ITO Glass
  • 5-wire Resistive Touch (Optional)
  • 5-wire Resistive Touch with EMI Mesh Coating (Optional)
WMRM919-EMI
  • Specifications
  • Download
  • Contact Sales
Viewable Size Image 19"
Active Display Area(mm) 376.32(H)x301.06(V)
Pixel Pitch(mm) 0.294(H)x0.294(V)
Number of Pixels 1280x1024
Contrast Ratio 1000:1(typ.)
Display Color 16.7M(Colors)
Brightness(cd/m˛) 400(typ.)
Viewing Angle(CR>=10) -85~85(H);-80~80(V)
Synchronization Range
Horizontal/Vertical
31.5~80.0KHz/60~75Hz
Recommended Resolution 1280x1024@60Hz, 75Hz
Signal Connector 15 pin D-Sub,
5 x BNCs, DVI-D, RS232
Power Source AC100~240V, Universal,±10%
DC 24V, ±10%(optional)
Power Consumption 41W typical, normal operation
Power Management VESA DPMS Compliant
Plug & Play VESA DDC 1/2B
Optional Video Input S-Video, Composite
Optional Touch Screen Resistive
Operating Temp -20°C ~ 60°C
Storage Temp -30°C ~ 70°C
Environmental(MIL-STD 810F/G Compliance)
Vibration MIL-STD-810F Method 514.5
Humidity MIL-STD-810F Method 507.4
Transit Drop MIL-STD-810F Method 516.5
Environmental(MIL-STD 461E/F Compliance)
RE RE101/RE102
CE CE101/CE102
CE Optional with EMI Glass w/ Touch
RS RS101/RS103
CS CS101/CS106/CS109/CS114 CS115/CS116
