Main Feature

  • Supports both ATX and extended ATX form factor
  • Ruggedly built with aluminum alloy
  • 7 full length add-on slots with card stabilizer
  • 20.1" TFT LCD (1600x1200 resolution)
  • Detachable full size keyboard (water resistant optional)
  • 4 x 3.5? removable HDD tray
  • 2mm impact resistant protection glass
TPC2010BB
  • Overview
  • Specifications
  • Download
  • Contact Sales

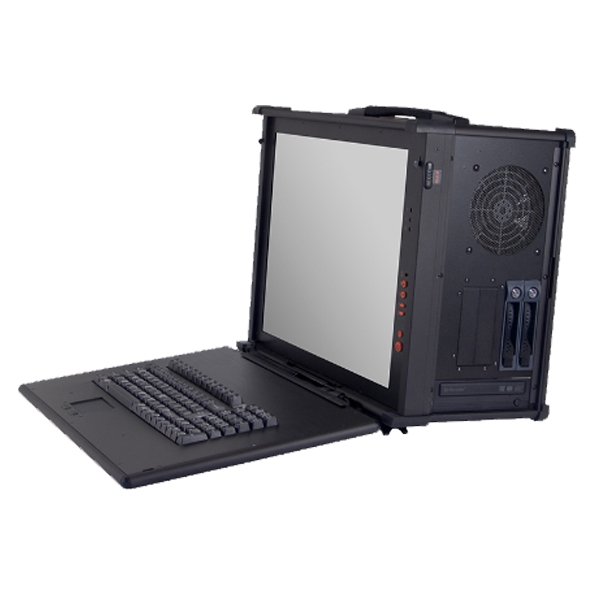

iTech Company’s TPC2010BB features a compact design which is an ideal solution for mobile applications. With its rugged aluminum chassis, rubberized corner and drive shock-mount, it can withstand various harsh conditions which are common in industrial applications. It LCD screen has extra protection to resist any impact. It also features multiple expansion slots and drive bays for ease of customization and future upgrades.

General Specifications
Standard or extended ATX form factor
Rugged aluminum chassis
Rubber protected corner & drive shock-mount
Add-on card stabilizer
Air circulation fan with filter
LCD brightness control & POWER/IDE LED indicator
Hard Anodizing Surface: MIL-A-8625E Type II/III
Built-in amplified stereo speakers
2mm impact-resistant glass panel
Full size membrane keyboard
Mouse touch pad with dual buttons
Soft wheeled carrying case
2 x 8cm fans

LCD Specifications
LCD size: 20.1″
Resolution: 1600x1200
Color: 16.7M
Brightness: 300 cd/m2
Contrast: 800:1
Response: 12ms

Structure
Total Slots: 7
Full-Lenght: 7
5.25″ Bay: 2
3.5″ Bay: 2
3.5″ Removable Bay: 4
Dimensions: 20.1″W x 15.2″H x 9.3″D
Weight: 40lbs

Operating Environment
Temperature: 0 to 60°C
Humidity: Meth 5%-95% RH, non-condensing
Altitude: 15,000 ft.
Shock: 15g, 11ms
Vibration: 20-60Hz, 0.075mm
Drop: 3 feet height free drop
EMI & Safety: FCC Class B, CE

Storage Environment
Temperature: -20 to 60°C
Humidity: Meth 5%-95% RH, non-condensing
Altitude: 40,000 ft.
Shock: 50g, 11ms
Vibration: 10-50Hz, 0.15mm
Drop: 3 feet height free drop
EMI & Safety: FCC Class B, CE
