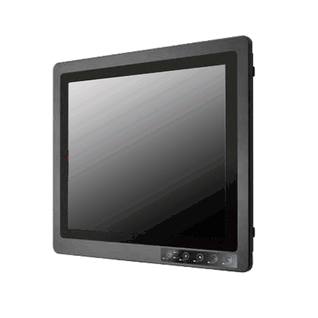

19" 1000nits Rugged IP67 with P-CAP Multi-touch Screen, Bonding with Panel Touch (Model: WRD1900WTHB-PCAP)

19" IP67 Display 1280x1024, 1000 cd/m² with P-CAP Multi-touch Screen, Bonding with Panel Touch Interface: USB IO: 1x M12 type connector for Touch screen via USB signal with One Year Warranty

19" IP67 Display 1280x1024, 1000 cd/m² with P-CAP Multi-touch Screen, Bonding with Panel Touch Interface: USB IO: 1x M12 type connector for Touch screen via USB signal with One Year Warranty

Inquiry/Quote Request
WRD1900WTHB-PCAP
  • Overview
  • Specifications
  • Download
Welcome to the WRD1900WTHB rugged housing-where durability meets precision. Built from solid aluminum and rated IP67, this compact enclosure is engineered to protect your PCAP (projected capacitive) touch display in the harshest environments. Whether you’re deploying in industrial floors, outdoor kiosks, or rugged mobile terminals, the WRD1900WTHB offers the reliability and strength to keep your interface responsive, protected, and ready for anything.


Features:
  • Totally sealed IP67 aluminum compact housing design
  • 19-inch 1280x1024 panel with Projected Capacitive Touch
  • -10°C to 60°C wide operating temperature
  • Fanless, streamlined enclosure for highly efficient heat dissipation
  • Rugged Front Anti-Impact Design
  • Front control membrane keys Lockable by software
  • Full IP67 male connectors with external female cables
  • 1x M12 type connector for VGA input
  • 1x M12 waterproof connector for 9~36V DC
  • Power Rating: DC 9-36V Input Power Adapter: AC 100-240V to DC 12V
DISPLAY
Touch / Glass Projected Capacitive Multi Touch Screen Bonding With Panel Resolution 1280x1024
Size 19.0 inches Contrast Ratio 1000:1
Panel Brightness 1000.0 nits Display Color 16.7M Colors
View Angles 85,85,80,80 Active Area 376.32x301.06 mm
MECHANICAL
Dimension 474 x 410 x 111 mm Weight 9.8 kg
Mounting Panel mount / VESA Mount Enclosure Aluminum Housing
Cooling System Fanless design Cut out 462 x 386 mm
ENVIRONMENT
Operating Humidity 10% to 90% RH, Non-Condensing Operating Temperature -10° C to 60°C
-40° C to 70°C (with intelligent heater)
Storage Temperature -30°C to 70°C Shock MILSTD810G Method 516.6 Procedure I
Vibration MILSTD810G Method 514.6 Procedure I IP Rating IP67
CERTIFICATION
Certification CE, FCC
I/O PORTS
Power Input 1 x M12 waterproof connector for 9~36V DC USB Port 1x M12 type connector for Touchscreen via USB signal
Serial Port 1 x M12 type connector for Touchscreen via RS232 signal (Optional) Video 1x M12 type connector for VGA input
1x Waterproof connector for HDMI input (Optional)
Indicator 1 x LED Indicator for power
1 x LED Indicator for status
CONTROL
Button 1 x Power Button
1 x Adjust up button
1 x Adjust down button
1 x ESC (Auto) button
1 x OK (Menu) button
ACCESSORIES
Accessories External open wire Power cable with waterproof connector
External USB cable with waterproof connector
External VGA cable with waterproof connector
Waterproof caps
Mounting clips
VESA screws		 Optional
Accessory		 100~240V AC to DC 50W Adapter with power cord (Optional)
External COM cable with waterproof connector (Optional)
External HDMI cable with waterproof connector (Optional)
