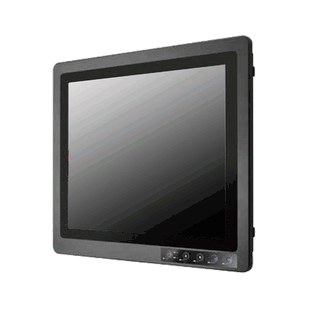

19" 1280 x 1024 400nits Rugged IP67 aluminum compact housing design Optical Bonding with Panel and Projected Capacitive Touch (Model: WRD1900WT-PCAP)

19" 1280 x 1024 400nits Rugged IP67 aluminum compact housing design Optical Bonding with Panel and Projected Capacitive Touch (Model: WRD1900WT-PCAP)

19" 1280 x 1024 400nits Rugged IP67 aluminum compact housing design Optical Bonding with Panel and Projected Capacitive Touch (Model: WRD1900WT-PCAP)

Main Feature

  • Totally sealed IP67 aluminum compact housing design
  • 19-inch 1280x1024 panel with Projected Capacitive Touch
  • -10°C to 60°C wide operating temperature
  • Fanless, streamlined enclosure for highly efficient heat dissipation
  • Rugged Front Anti-Impact Design (IEC60079-0 section26.4.2)
  • Front control membrane keys Lockable by software
  • Full IP67 male connectors with external female cables
  • Optical Bonding with Panel and Touch
Inquiry/Quote Request
WRD1900WT-PCAP
  • Specifications
  • Download
  • Contact Sales
System Specifications
Size 19”
Resolution (pixels) 1280 x 1024
Brightness 400 cd/m2
Contrast Ratio 1000 : 1 (typ.)
Viewing Angles -85~85(H);-80~80(V)
Max Colors 16.7M
Recommended
Resolution 		1280 x 1024 @ 60Hz~75Hz
Signal Input 15 pin D-Sub
Power Input 9~36V DC in, with External
AC to DC Adapter(100-240V AC)
Touch Screen Projected Capacitive
(Optionl AR Pretection glass)
Standards and Certifications
Safety UL60950-1, CSA C22.2 No. 60950-1-07,
EN60950-1, IEC60950-1
CE
FCC
FIP67 Sealed Housing certified by SGS
Shock MIL-STD-810G Method 516.6
Drop MIL-STD-810G Method 516.6
Vibration MIL-STD-810G Method 514.6
Mechanical Specification
Mechanical Housing Panel Mount
Dimension(W x H x D) 474mm x 410mm x 143.5mm
Gross Weight 13.5 kg
Net Weight 10.0 kg
Power Specifications
Power Input 9~36V DC input
Environment Considerations
Operating Temperature -10 deg.C to 60 deg.C
Operating Humidity 5 to 95%
Full IP67 Connectors
1 x IP67 grade Connectors for DC 9~36V in
1 x IP67 grade Connectors for HDMI (Optional)
1 x IP67 grade Connectors for RS232 Remote Control (Optional)
1 x IP67 grade Connectors USB for Touch Screen
1 x IP67 grade Connectors for VGA signal in
Accessories
1 x Driver & Manual CD
1 x AC to DC 12V 50W Power Adapter
4 x IP67 External Cables (USB / VGA / COM (Optional) / Power)
