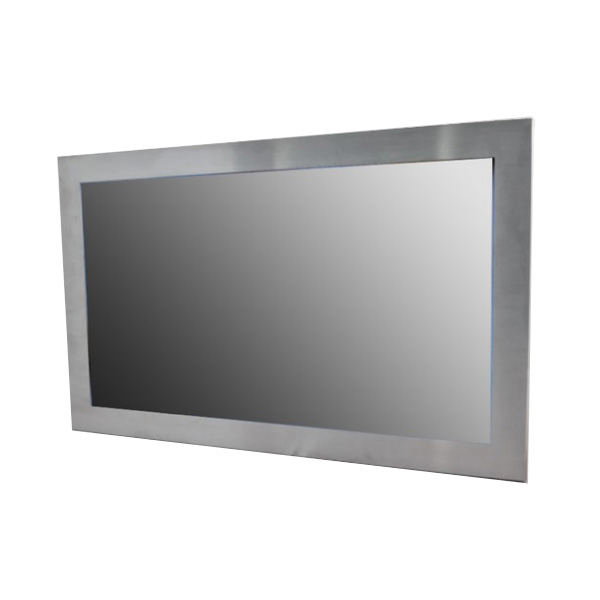

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 24" Normal Brightness 300 nits, 1920x1080 with external 100~240V AC + adapters based on Default 3 set waterproof connectors Waterproof connectors & cables: DVI,VGA & Power 6ft long only (Model: CCHW2400-SIP)
Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 24" Normal Brightness 300 nits, 1920x1080 with external 100~240V AC + adapters based on Default 3 set waterproof connectors Waterproof connectors & cables: DVI,VGA & Power 6ft long only (Model: CCHW2400-SIP)
Main Feature
- High Contrast color TFT LCD Monitor support resolution up to Full HD (1920 x 1080 )
- Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Display | Viewing Size Image | 24” |
| Active Display Area (mm) | 531.36 (H) x 298.89 (V) | |
| Pixel Pitch (mm) | 0.27675 (H) x 0.27675(V) | |
| Resolution | 1920 x 1080 | |
| Contrast Ratio | 3000: 1 (typ.) | |
| Color | 16.7M(8bits+color) | |
| Brightness | 300 cd/? | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | VGA,DVI, USB for Touch | |
| Power | Source | 12V DC in, with External AC-DC Adapter(100-240V) |
| Consumption | 45W typical, normal operation | |
| Management | VESA DPMS Compliant | |
| Optional | Touch | Resistive, PCAP ,IR |
| High Brightness | YES | |
| Auto Dimming | YES | |
| POWER in | DC24V,DC9V~36V | |
| Remote Control | YES | |
| IO | AV,HDMI,DP |
