Rugged industrial monitors/Panel Mount LCD Monitor 12.1" w/ video input (iNAP-1200AV)

Rugged industrial monitors/Panel Mount LCD Monitor 12.1" w/ S-Video, & Composite Video input & optional touch screen (Model iNAP-1200AV)

Rugged industrial monitors/Panel Mount LCD Monitor 12.1" w/ S-Video, & Composite Video input & optional touch screen (Model iNAP-1200AV)

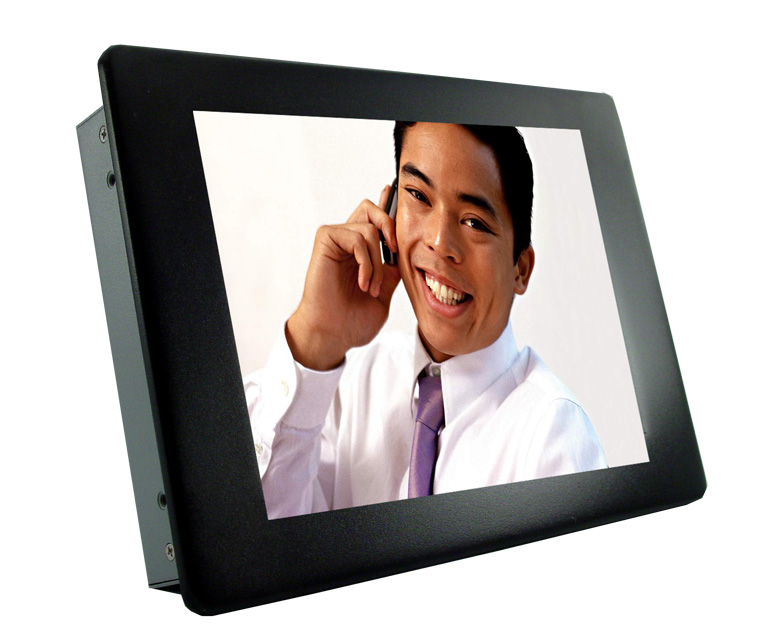

iNAP-1200AV
  • Overview
  • Download

Product discontinues. Contact us at Info@iTechLCD.com to find out more information.

Features
  • 12.1" VGA TFT LCD support 800 x 600 pixels
  • 300cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Different models fit for various application
  • Rugged construction
  • 6mm aluminum front cover
  • Front IP protection
  • Modulariezed design
  • Low power consumption
  • Optional with touchscreen and DC power input
  • Video input (S-video & Compsite)
  • Wide-ranges Mounting kits (VESA mount, Wall mount, Panel mount, OEM mounting design...)
Specification
LCD
LCD Type LG Grade A industrial TFT LCD Panel
Display Size 12.1 inch diagonal
Resolution 800 x 600, SVGA
Display Color 262,144 color
Brightness 300 cd/m2
Contrast Ratio 200 : 1 (Typical)
Pixel pitch 0.3075 x 0.3075 mm
Viewing Angle 60 / 60 / 55 / 40 (L / R / U / D)
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall
Backlight lifetime 50,000 hrs
Signal Input
Horizontal Input Video Signal Analog RGB
Video Level Analog: 0.7Vp-p
Sync Type Separate H/V, Composite H/V
Input Connector D-Sub 15 Pin VGA analog
Video Input
Video Input S-Video and Composite
Input Connectors RCA, S-video
Touch Screen (Optonal)
Type
5-Wire Resistive
Surface Accoustic Wave
Thichness
2.2mm
3mm
Light Transmission
87%
90%
Controller
Serial / USB
Serial / USB
Durability
35 million
50 million
OS Support
Windows XP, 2000, NT, 98, DOS and Linux

External Power Adapter


Power Input 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 8.3A)
Optional DC Power 12V, 24V or 48V DC input
Mechanical
Material 6mm Aluminum (Front panel)
1.2mm Steel (Rear case)
Finish Powder Coating
Color Front Panel : Black
Back : Dark Grey (RAL7037)
Dimension 326.5 x 58.3 x 270.4 mm (WxDxH)
Weight 2.5 kg
Environmental
Temperature

0 to 50 Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage)

Relative Humidity 80%, non condensing
Shock 49G peak acceleration (11ms, half since wave)
Vibration 58~500Hz/ 0.98G (11min/ cycle)
Package Information
Carton Box 555 x 90 x 470 mm (WxDxH)
Weight 4.5 kg
