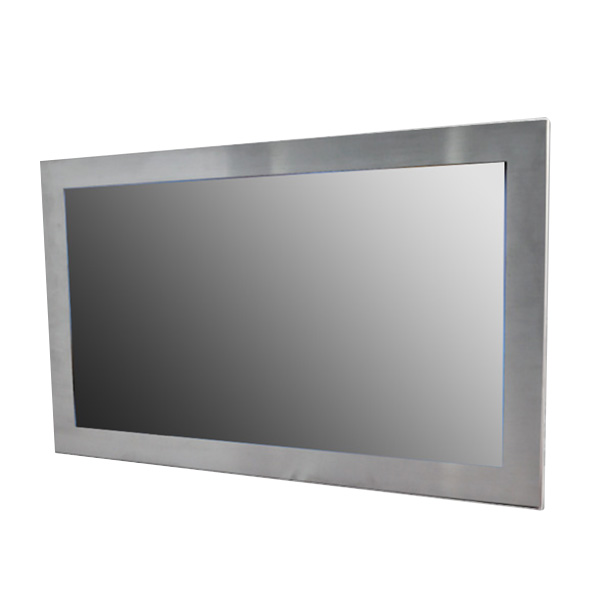

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 24" Normal Brightness 300nits, 1920x1080 with Projective Capacitive Touch (1-2mm) USB Controller, based on Default 3 set waterproof connectors Waterproof connectors & cables: DVI,VGA USB for touchscreen & Power 6ft long only with external 100~240V AC + adapter (Model: CCHW2400-SIP-PCT)
Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 24" Normal Brightness 300nits, 1920x1080 with Projective Capacitive Touch (1-2mm) USB Controller, based on Default 3 set waterproof connectors Waterproof connectors & cables: DVI,VGA USB for touchscreen & Power 6ft long only with external 100~240V AC + adapter (Model: CCHW2400-SIP-PCT)
Main Feature
- High Contrast color TFT LCD Monitor support resolution up to Full HD (1920 x 1080 )
- Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance
CCHW2400-SIP-PCT
- Specifications
- Download
- Contact Sales
Display |
Viewing Size Image |
24” |
Active Display Area (mm) |
531.36 (H) x 298.89 (V) |
Pixel Pitch (mm) |
0.27675 (H) x 0.27675(V) |
Resolution |
1920 x 1080 |
Contrast Ratio |
3000: 1 (typ.) |
Color |
16.7M(8bits+color) |
Brightness |
300 cd/? |
Viewing Angle |
-89~89 (H) ; -89~89 (V) |
Recommended Resolution |
1920 x 1080 @ 60Hz |
Signal Connector |
VGA,DVI, USB for Touch |
Power |
Source |
12V DC in, with External AC-DC Adapter(100-240V) |
Consumption |
45W typical, normal operation |
Management |
VESA DPMS Compliant |
Optional |
Touch |
Resistive, PCAP ,IR |
High Brightness |
YES |
Auto Dimming |
YES |
POWER in |
DC24V,DC9V~36V |
Remote Control |
YES |
IO |
AV,HDMI,DP |
