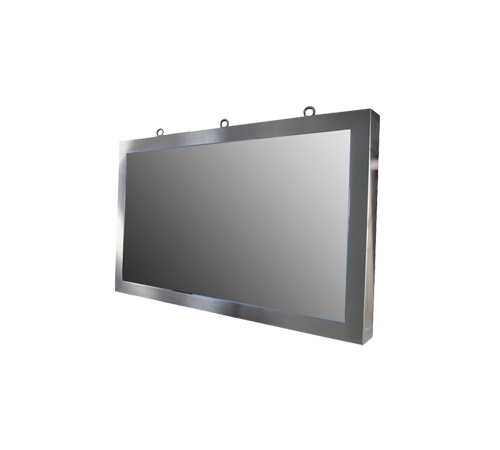

55" 1000nits Stainless Steel Chassis/Surface Mount 1920x1080 w/ PCAP Touch / HDMI+DVI+VGA Input (Model: CCHW5500HB-SIP-PCT)

High Brightness Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount 55" Brightness 1000nits, 1920x1080 with Projective Capacitive Touch (1-2mm) USB Controller Based on Default 3 set waterproof connectors Waterproof connectors & cables: HDMI, DVI, VGA USB for touchscreen & Power 6ft long only with external 100~240V AC + adapter Wide Temp 0 to 50C Operating Temp

High Brightness Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount 55" Brightness 1000nits, 1920x1080 with Projective Capacitive Touch (1-2mm) USB Controller Based on Default 3 set waterproof connectors Waterproof connectors & cables: HDMI, DVI, VGA USB for touchscreen & Power 6ft long only with external 100~240V AC + adapter Wide Temp 0 to 50C Operating Temp

Overview
Specifications
Download

Features:

High contrast color TFT LCD Monitor support resolution up to Full HD (1920x1080)
Widely used in chemical industry, food industry, medical devices, appliances etc with good corrosion resistance.
Based on Default 3 Set Waterproof Connectors & Cables: HDMI, DVI, VGA USB for touch screen & Power 6ft long only with external 100~240V AC + adapter
Wide Temp 0 to 50°C Operating Temp
Remark: This unit designed to be installed under completed shaded area without direct sunlight. Not facing east and west

Display	Viewing Size Image	55"
	Active Display Area (mm)	1213 (H) x 684 (V)
	Pixel Pitch (mm)	0.21(H)x 0.63(V)
	Resolution	1920x1080
	Contrast Ratio	4000 : 1 (typ.)
	Color	1073.7M (10bits/color)
	Brightness	1000nits
	Viewing Angle	-89~89 (H) ; -89~89(V)
	Recommended Resolution	1920 x 1080 @ 60Hz
	Signal Connector	HDMI, DVI, VGA
Power	Source	AC100V~AC240V
	Consumption	170W typical, normal operation
	Management	VESA DPMS Compliant
Optional	Touch	Resistive, PCAP,IR
	High Brightness	1000,1500
	Auto Dimming	YES
	POWER in	DC24V
	Remote Control	YES
	IO	AV, DP
