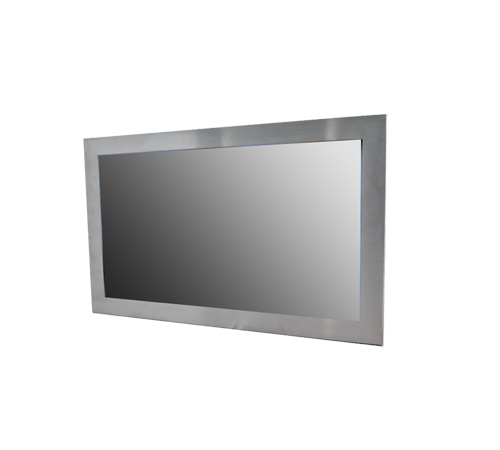

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 10.4" LCD monitor , 1024 x 768, 1000 nits, with Glass, VGA and DVI input with Projective Capacitive Touch (1-2mm) USB Controller (Model: CCH1040HB-SIP-PCT)

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 10.4"  LCD monitor , 1024 x 768, 1000 nits, with Glass, VGA and DVI input with Projective Capacitive Touch (1-2mm) USB Controller (Model: CCH1040HB-SIP-PCT)

Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 10.4" LCD monitor , 1024 x 768, 1000 nits, with Glass, VGA and DVI input with Projective Capacitive Touch (1-2mm) USB Controller (Model: CCH1040HB-SIP-PCT)

Main Feature

    • High Contrast color TFT LCD Monitor support resolution up to (1024 x 768)
    • Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance
CCH1040HB-SIP-PCT
  • Specifications
  • Download
  • Contact Sales
Viewable Size Image 10.4"
Active Display Area(mm) 210.432(H) x 157.824(V)
Pixel Pitch(mm) 0.0685 (H) x 0.2055(V)
Number of Pixels 1024x768
Contrast Ratio 1200:1 (typ.)
Display Color 16.2M
Brightness(cd/m 2 ) 1000 (typ.)
Viewing Angle(CR>=10) -88~88(H);-88~88(V)
Synchronization Range  Horizontal/Vertical 31.5~46.9KHz / 60~75Hz
Recommended Resolution 1024x768@60Hz, 75Hz
 Signal Connector D-Sub 15pin
I/O 3 pin Power cable(IP65 connector);
10 pin VGA cable (IP65 connector);
DVI (IP65 connectors);
USB cable for Touch (IP65 connector)
Optional for RS232 for touch (IP65 connector)
Power Source 12V DC in, with External AC to DC Adapter (100~240 VC)
Power Consumption 15W typical, normal operation
Power Management VESA DPMS Compliant
Plug & Play VESA DDC 1/2B
Optional Touch Screen Resistive and PCAP Touch
Optional video Yes
Optional Optical bonding For Moisture Prevention
  CNS JIS ASTM AISI DIM
Stainless Material 304 SUS304 S30400 304 1.4301
