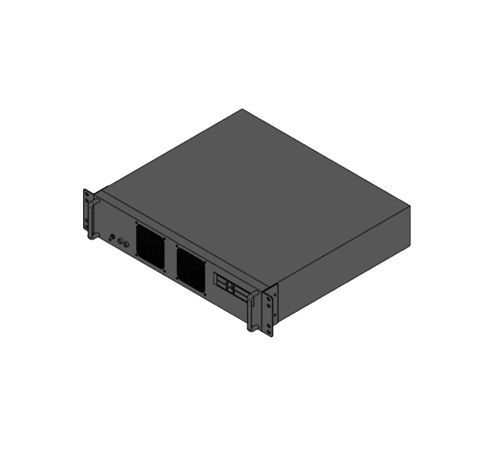

Rugged 2U Rackmountable Ultra Fast 14th Generation Server w/ i9-14900K or i9-14900T 24-Core (Model: Nmil-RM2U-i9K)

Rugged 2U Rackmountable Ultra Fast 14th Generation Server Intel newest 14th Generation i9-14900K or i9-14900T 24-Core, 32-Thread 4.4~6.0 GHz, 2TB M.2 2280 NVMe Ultra Fast SSD, 2x 2.5" Hot-Swap Disk bays, RAID 0,1,5,10, 4x USB3.2, 2x Fast LAN, 1x VGA, 2x HDMI, 1x DP, 1x RS232/422/485, AC100~240V Power Input

Overview
Specifications
Download

Welcome to the NMIL RM2U‐I9K, the premium rugged 2U rackmountable server from iTech designed to perform where ordinary servers fail. Built with military-grade durability, this server stands up to vibrations, shock, extreme temperatures, dust, and moisture making it the go-to choice for industrial plants, military installations, field deployments, and anywhere uptime matters. Engineered for both power and reliability, the RM2U-I9K offers advanced computing capability in a robust package that keeps working, no matter what.

Mechanical	Height	2U Rugged Rack Mount
	Material	Rugged heavy-duty galvanized steel with anti- corrosion treatment
	Color	Semi-gloss black, RAL-9005
	Cooling Method	Cooling fans blow in from front and blow out at rear
System	Main Board Grade	Military grade main board
	Processor	Intel newest 14th Generation i9-14900K or i9-14900T 24-Core, 32-Thread 4.4~6.0 GHz super fast processor
	No. of Core / Thread	24 Cores, 32 Threads
	Cache Memory	36MB smart cache memory
	GPU	there is no GPU on I9-14900K
GPU	GPU Engine	there is an Intel UHD-770 high-end GPU integrated on i9-14900T that supports: Direct X: 12.0 ,Open GL : 4.5
	DirectX	12.0
	Video share memory	64GB
	Open CL	3.0
	Note:	Please choose this better I9-14900T processor.
RAM	RAM	64GB DDR5 4800MHz fast DIMM RAM
	RAM Expansion	Expand up to 128GB
	RAM Type	DIMM
1Storage	SSD	2TB M.2 2280 NVMe SSD Samsung 990 Pro or Micron Crucial for same ultra fast performance
	SSD Type	M.2 2280 NVMe 2.5" SATA-III
	2.5" Disk Bay	2 x 2.5" Disk Bays
	Option	Up to 6 x 2.5" SSD Bays, each bay with a keylock
Expansion Slot	PCIe x16 Slot	2 x PCIe Gen.4 x16 Slots
	PCIe x4 Slot	1 x PCIe Gen.3 x4 slot
	PCIe x1 Slot	1 x PCIe Gen.3 x1 slot
RAID Support	RAID Support	RAID 0, 1, 5, 10
I/O Port	USB at Rear	4 x USB3.2 ultra fast USD at rear
	VGA	1 x VGA support up to 1920 x 1200 resolution
	HDMI	2 x HDMI support up to 4096 x 2160 4K resolution
	DP	1 x DP support up to 4096 x 2160 4K resolution
	COM (Serial)	1 x configurable RS232/422/485 (default RS232) serial port
	Audio	1 x Mic-in, 1 x Speaker-out, 1 x Audio-in
	AC Input	1 x AC
Power Supply	AC Power Input	AC100~240V, 50/60Hz auto-sensing
Power Supply	Power Consumption	Around 120W (i9-14900T) Around 270+W (i9-14900K)
Dimension	W x H x D	483 (W) x 88 (H) x 360 (D) mm
Environmental	Operating Temperature	-5 to +55 degree C
	Storage Temperature	-25 to +85 degree C
	Humidity	0 ~ 90% relative humidity at +30 dgree C, non-condensing
	RoHS	Compliant
	Shock	MIL-STD-810 compliant
	Vibration	MIL-STD-810 compliant
EMC / EMI	CE	Approval
	FCC	Approval
	MIL-STD-461	Optional
