Rugged 2U Rackmountable Server w/ i9-14900K or i9-14900T 2TB NVMe SSD, 64GB DDR5, 4xUSB, 1xVGA, 2xHDMI, 1xDP (Model: Nmil-RM2U-i9-4)
Rugged 2U Rackmountable Ultra Fast 14th Generation Server Intel newest 14th Generation i9-14900K or i9-14900T 24-Core, 32-Thread 4.4~6.0 GHz, 2TB M.2 2280 NVMe SSD, 64GB DDR5 4x USB3.2, 1x2.5Gb, 1x VGA, 2x HDMI, 1x DP AC100~240V Power Input
X
Inquiry/Quote Request
- Overview
- Specifications
- Download

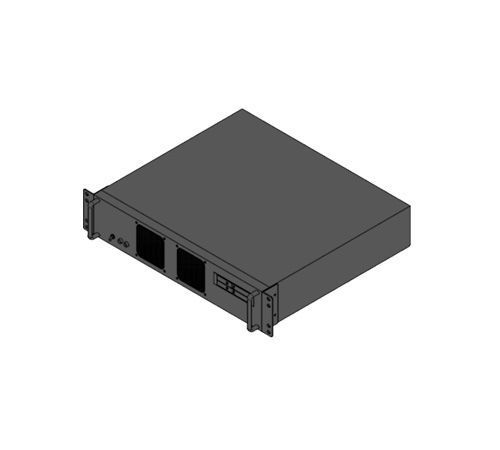

| Meet the NMIL-RM2U-i9-4: a high-performance, rugged 2U rack-mount server built by i‑Tech Company for the most demanding environments. Engineered for reliability under harsh conditions, this military-grade server combines cutting-edge Intel Core i9 processing power with a robust chassis and enterprise-grade features. Whether deployed at the edge, in mobile operations, or in industrial missions, the NMIL-RM2U-i9-4 delivers exceptional compute performance, expandability and durability to support mission-critical workloads. |
| Mechanical | Height | 2U Rugged Rack Mount |
| Material | Rugged heavy-duty galvanized steel with anti- corrosion treatment | |
| Color | Semi-gloss black, RAL-9005 | |
| Cooling Method | Cooling fans blow in from front and blow out at rear | |
| System | Main Board Grade | Military grade main board |
| Processor | Intel newest 14th Generation i9-14900K or i9-14900T 24-Core, 32-Thread 4.4~6.0 GHz super fast processor | |
| Smart Cache | 36MB | |
| GPU | there is no GPU on I9-14900K | |
| GPU | GPU Engine | there is an Intel UHD-770 high-end GPU integrated on i9-14900T that supports |
| DirectX | 12.0 | |
| Video share memory | 64GB | |
| Open CL | 3.0 | |
| Open GL | 4.5 | |
| RAM | RAM | 64GB DDR5 4800MHz fast DIMM RAM, |
| RAM Expansion | expandable up to 128GB | |
| RAM Type | DIMM | |
| Storage | SSD | 2TB M.2 2280 NVMe SSD Samsung 990 Pro or Micron Crucial for same ultra fast performance |
| SSD Type | M.2 2280 NVMe 2.5" SATA-III |
|
| 2.5" Disk Bay | 2 x 2.5" Disk Bays | |
| Option | Up to 6 x 2.5" SSD Bays, each bay with a keylock | |
| Expansion Slot | PCIe x16 Slot | 2 x PCIe Gen.4 x16 Slots |
| PCIe x4 Slot | 1 x PCIe Gen.3 x4 slot | |
| PCIe x1 Slot | 1 x PCIe Gen.3 x1 slot | |
| RAID Support | RAID Support | RAID 0, 1, 5, 10 |
| I/O Port | USB | 4 x USB3.2 ultra fast ports |
| LAN | 1 x 2.5Gb + 1 x 1.0Gb Ethernet | |
| VGA | 1 x VGA support up to 1920 x 1200 | |
| HDMI | 2 x HDMI support up to 4096 x 2160 4K | |
| DP | 1 x DP support up to 4096 x 2160 4K | |
| COM | 1 x RS232/422/485 serial (default RS232) port | |
| Audio | 1 x Mic-in, 1 x Speaker-out, 1 x Audio-in | |
| AC | 1 x AC | |
| Power Supply | AC Power Input | AC100~240V, 50/60Hz auto-sensing |
| Power Consumption | Around 120W (i9-14900T) Around 270+W (i9-14900K) |
|
| Dimension | W x H x D | 483 (W) x 88 (H) x 360 (D) mm |
| Environmental | Operating Temperature | -5 to +55 degree C |
| Storage Temperature | -25 to +85 degree C | |
| Humidity | 0 ~ 90% relative humidity at +30 dgree C, non-condensing | |
| RoHS | Compliant | |
| Shock | MIL-STD-810 compliant | |
| Vibration | MIL-STD-810 compliant | |
| EMC / EMI | CE | Approval |
| FCC | Approval | |
| MIL-STD-461 | Optional |
