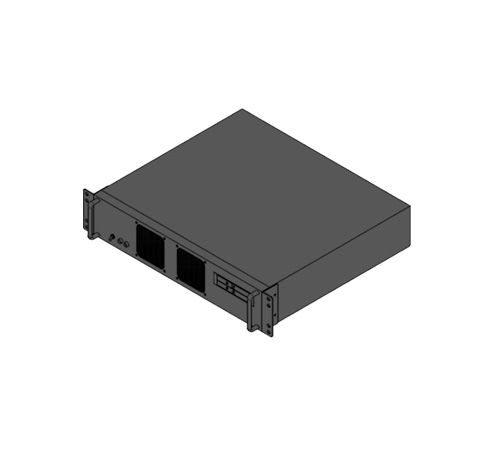

Rugged 2U Rack Mount Server, Intel 13th Gen. i9 24-Core, 128GB DDR5, 8TB SATA SSD (Model: Nmil-RM2U-i9V2)
Rugged 2U Rack Mount Server, Intel 13th Gen. i9 24-Core Ultra Fast 3.9~5.1GHz, 128GB DDR5 5600MHz Fast RAM, 8TB SATA SSD, VMwar 8.0 Enterprise: Support
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The NMIL-RM2U-i9V2 is a high-performance 2U rugged rackmount server designed for mission-critical applications in extreme environments. Powered by an advanced Intel Core i9 processor, this server delivers exceptional computing power within a robust MIL-grade chassis. Engineered to withstand shock, vibration, and temperature fluctuations, it is ideal for military, aerospace, and industrial deployments. With multiple expansion slots, flexible I/O options, and enhanced thermal management, the NMIL-RM2U-i9V2 offers reliability and performance where it matters most. |
| Mechanical | Height | Rugged Rack Mount 2U chassis |
| Material | Galvanized heavy-duty steel with anti-corrosion treatment | |
| Color | Semi-gloss black | |
| Cooling Method | Cooling fans blow in from front and out from rear | |
| System | Main Board Grade | Military grade main board |
| Processor MHz CPU Mark SSD Write Capacity |
Intel 13th Gen. i9 24-Core ultra fast 3.9~5.1GHz, 41,779 MHz in total 16,265 1758 TB per hour |
|
| No. of Core, Cache | 24 Cores, 32 Threads | |
| Cache size | 36 MB smart cache | |
| GPU | Intel UHD 770 | |
| DirectX | 12 | |
| Open GL | 4.5 | |
| Open CL | 3.0 | |
| RAM, SSD | RAM | 128GB RAM Each Server |
| Expansion | Up to 64GB | |
| Storage SSD | 8TB 2.5" SSD, tool-less removable, 14,000TB write capacity, FIPS-140-2 or TCG Opal V2 compliant | |
| I/O Port | LAN | 2 x 2.5Gb Ultra Fast Ethernet |
| USB | 4 x USB3.2 ultra fast USB ports | |
| VGA | 1 x VGA support up to 1920 x 1200 | |
| HDMI | 2 x HDMI support up to 4096 x 2160 4K | |
| DP | 1 x DP support up to 4096 x 2160 4K | |
| Serial | 1 x configurable RS232/422/485 serial port | |
| Audio | 3 x Audio, AC : 1 x AC with Mil. Circular connector | |
| Power Connector | 1 x AC with Military circular connector | |
| Power Supply | AC Input | AC100~240V, 50/60 Hz, auto-sensing\ rugged server including VMware 8.0 |
| DC Input | Optional at your request | |
| Dimension | W x H x D | 483 (W) x 88 (H) x 380 (D) mm |
| Environmental | Operating Temperature | 5 ~ +50°C |
| Storage Temperature | -40 ~ +85°C | |
| Humidity | 5~95% Relative Humidity at 30°C non-condensing | |
| EMI / EMC | CE | Approval |
| FCC | Approval | |
| MIL-STD-461 | Optional |
