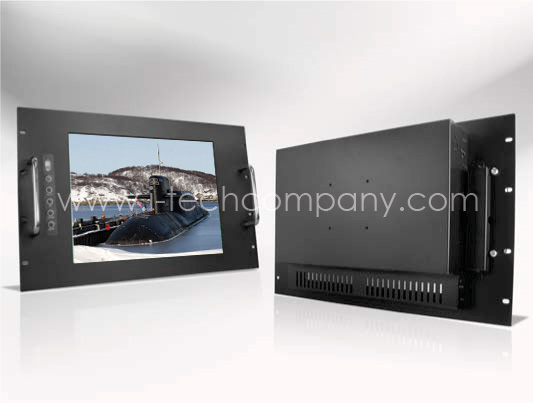

7U Rack Mount, 15" LCD Monitor VGA input, Wide View Angle and wide Temp w/ IR Touch (Model: ERM1500H-IR)

7U Rack Mount, 15" LCD monitor, 1024x768, LED 250 nits, VGA input, wide view angle and wide temperature with IR Touch

7U Rack Mount, 15" LCD monitor, 1024x768, LED 250 nits, VGA input, wide view angle and wide temperature with IR Touch

Main Feature

    • Modularize mechanical design provides flexible product confguration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • VGA connector with optional AV,SV,AV-Looping
    • Complete custom design/solution for OEM customers
ERM1500H-IR
  • Specifications
  • Download
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size 4 : 3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 M
Brightness / Contrast 250 cd/m2 (typ) / 1500 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 170 (- 85 ~ + 85) , V. 170 (- 85 ~ + 85)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 20 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity -15C ~ 65C (5F ~ 149F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity -30C ~ 80C (-22F ~ 176F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 4 Kgs / 5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
