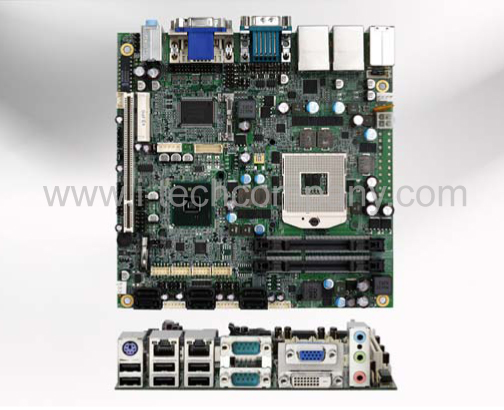

Intel® Core i5 Celeron Mini-ITX Industrial Motherboard (Model: CDi5-QM57)

Intel® Core i5 Celeron Mini-ITX Industrial Motherboard (Model: CDi5-QM57)

Intel® Core i5 Celeron Mini-ITX Industrial Motherboard (Model: CDi5-QM57)

CDi5-QM57
  • Overview
  • Download

Features:

  • Supports Intel Core i7/i5 32nm processors
  • 2 x DDR3 SO-DIMM(w/o ECC), up to 4GB
  • Supports CRT,DVI and LVDS (dual display)
  • 2 x Gigabit LAN
  • 6 x SATA II, 10 x USB 2.0, 6 x COM
  • 1 x Mini PCI-E
  • Optional AMT, RAID


Specifications:


System processor/Chipsets Processor Intel® Core™ i7/i5/Celeron processors
Socket G
FSB 1066MHz
Chipset Intel® QM57
BIOS AMI
Memory Technology DDR3 800/1066 MHz SDRAM
Max. Capacity Up to 8GB DDR3 DRAM
Socket 2 x DDR3 SO-DIMM
Audio Controller Realtek ALC662 HD CODEC
Audio Interface High Definition Audio
Display Chipset Intel® QM57 integrated HD Graphics
Display Memory Shared system memory up to 2GB
Resolution Analog Display: Up to 2048 x 1536
LVDS 18/24bit, dual channel
LVDS Resolution Digital LVDS: Up to 1920 x 1200
Dual Display CRT+LVDS, CRT+DVI
Ethernet Interface Dual 10/100/1000 Mbps
Controller LAN1: Intel 82577LM, LAN2: Intel 82574L
Mechanical & Environmental Power Type ATX: 20-pin and 4-pin
Operating Temperature -5°C~60°C (23°F~140°F)
Storage Temperature -20°C~80°C(-68°F~176°F)
Operating Humidity 0%~95% (non-condensing)
Size 6.69'' x 6.69'' (170mm x 170mm)
Weight 0.88lbs (0.4Kg)
