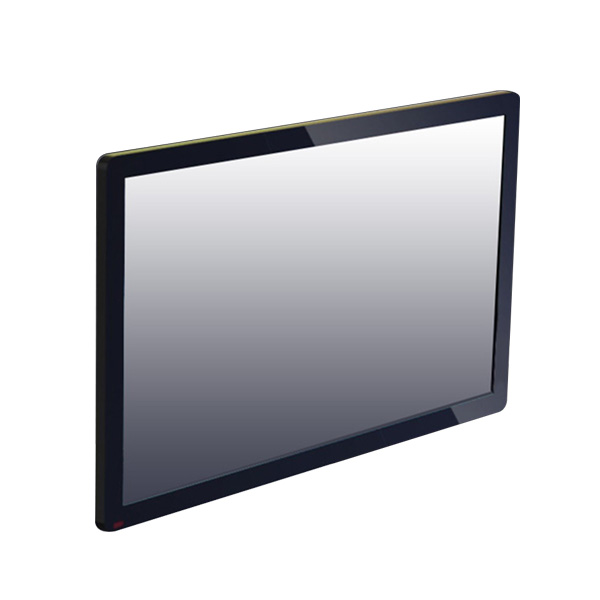

32" Metal Wall Mount Housing, 1920x1080 LED backlight , SBC with intel Kabylake NM70 chipset and i3-7100U 2.4Ghz CPU (Model: MCPCW3200HD-i3)

32" Metal Wall Mount Housing, 1920x1080 LED backlight , SBC with intel Kabylake NM70 chipset and i3-7100U 2.4Ghz CPU (Model: MCPCW3200HD-i3)

32" Metal Wall Mount Housing, 1920x1080 LED backlight , SBC with intel Kabylake NM70 chipset and i3-7100U 2.4Ghz CPU (Model: MCPCW3200HD-i3)

Main Feature

  • 31.55” Color Active Matrix Liquid Crystal Display
  • 1920x1080 WUXGA Resolution
  • 8-bit 2-port LVDS interface
Inquiry/Quote Request
MCPCW3200HD-i3-
  • Specifications
  • Download
  • Contact Sales

LCD SPECS

Active Screen Size 31.55 inches(801.31mm) diagonal
Outline Dimension 727.4(H) x 429.0(V) x 9.9 (B)/ 22.7 mm(D) (Typ.)
Pixel Pitch 0.36375 mm x 0.36375 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8bit, 16.7 Million colors
Luminance, White 400 cd/m2 (Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption Total 37.94W(Typ.) [Logic= 6.04W(Typ.), LED Driver =31.9 (TBD)W (ExtVbr_B=100%)]
Weight 5.4Kg(Typ.). [TBD]
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer, (Haze <1%)
Possible Display Type Landscape and Portrait Enabled

PC SPECS

  • Intel® Skylake U / Kabylake U Processor (TDP 15W)
  • Support 2 * DDR4 SO-DIMM slot, up to 32GB
  • Support DisplayPort, HDMI and eDP/LVDS (triple display)
  • Intel Gigabit LAN, 2 * RJ45 ports
  • Realtek ALC662 Audio CODEC
  • 1 * Serial ATAIII (6Gb/s) and 1 * mSATA (shared with mPCIe)
  • 5 * Internal RS232 & 1 * Internal RS232/422/485)
  • 4 * External USB3.0, 2* External USB1.1/2.0 & 5 * Internal USB1.1/2.0
  • 1 * full size mPCIe (shared with mSATA), 1 * half size

Form Factor
Dimensions - 3.5” SBC (148 * 102mm)
Processor System
CPU - Intel® Skylake/Kabylake U Processor (TDP 15W, default CPU: i5-6200U, i5-6300U, Celeron 3855U)
Core Number -i5-6200U : 2
-i5-6300U : 2
-Celeron 3855U : 2
Max Speed -i5-6200U : 2.8GHz
-i5-6300U : 3.0GHz
-Celeron 3855U : 1.6GHz
L2 Cache -i5-6200U : 3MB
-i5-6300U : 3MB
-Celeron 3855U : 2MB
Chipset - SoC
BIOS - AMI 128Mb SMT Flash ROM
Expansion Slot
PCI - 0
Mini-PCIe - 1 (full size, shared with mSATA) & 1 (half size)
mSATA - 1 (full size, shared with mPCIe)
PCIe - 0
M.2 - 0
CFast Card Socket - 0
CF Card Socket - 0
SIM Card Holder - 0
Memory
Technology - Dual CH DDR4 2133MHz SDRAM
Max. - 32GB
Socket - 2 * SO-DIMM
Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 0
LVDS - 1 (max. 1920 x 1080@60Hz resolution) (Selectable with eDP, not working while using LVDS)
eDP 1.3 - 1 (max. 4096 x 2304@60Hz resolution) (Selectable with LVDS, not working while using eDP)
