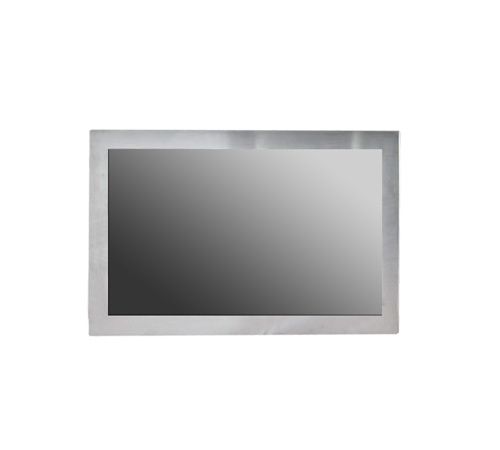

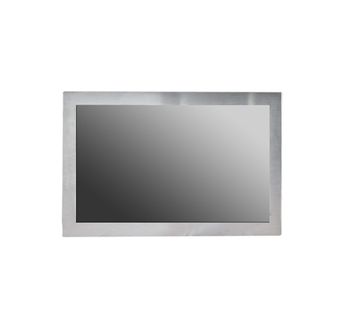

27" Full HD IP66 Industrial Monitor 1000 nits, Stainless Steel 304, AR Glass w/ VGA, DVI, HDMI, 12VDC (Model: SCHW2700HB-SIP)
27" Full HD IP66 Industrial Monitor, 1000 nits, Stainless Steel 304, AR Glass, Waterproof I/O (VGA, DVI, HDMI, 12VDC, 6ft cables), Wall Mount Ready
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The SCHW2700HB-SIP is a rugged 27-inch high brightness industrial LCD monitor built with a corrosion-resistant Stainless Steel 304 enclosure and fully sealed to meet IP66 and NEMA 4X standards. Ideal for demanding washdown environments, this display features a 1000-nit sunlight-readable screen, anti-reflective glass, and waterproof I/O connectors, making it perfect for food processing, pharmaceutical, and marine applications. |
Features: |
|
| Display | Viewing Size Image | 27" |
| Active Display Area (mm) | 600.30 (H) x 338.30 (V) | |
| Pixel Pitch (mm) | 311.25(H)x311.25(V) | |
| Resolution | 1920x1080 | |
| Contrast Ratio | 3000 : 1(typ) | |
| Color | 16.7M (8bits/color) | |
| Viewing Angle | -89~89 (H) ; -89~89 (V) | |
| Brightness | 1000 cd/m2 | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | VGA, DVI, HDMI | |
| Power | Source | 12VDC input |
| Consumption | 45W typical, normal operation | |
| Management | VESA DPMS Compliant |
