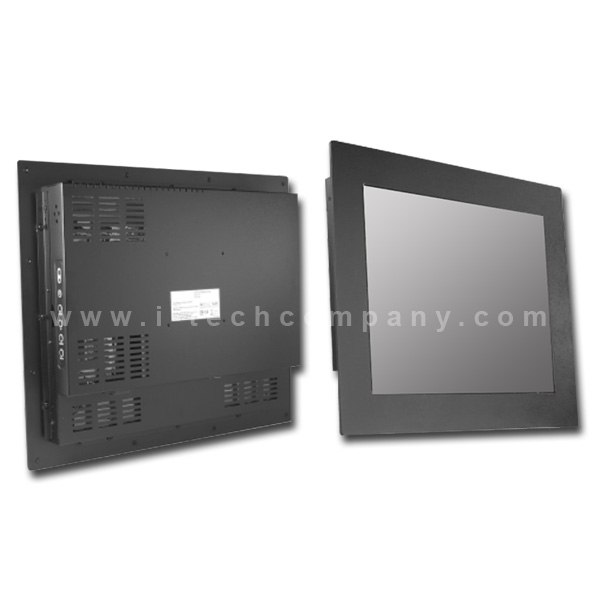

IP66 Military Grade Rugged Panel Mount, 15" LCD monitor, 1024x768, LED-1000 nits, WV(170°/170°), WT(-15°C~65°C), VGA HDMI DVI, AC-IN w/ Built-in Power, Comply MIL-STD-810G Vibration and shock, Power comply MIL-STD-1275D. (Model: EMPM1500HBWWT)

IP66 Military Grade Rugged Panel Mount, 15" LCD monitor, 1024x768, LED-1000 nits, WV(170°/170°), WT(-15°C~65°C), VGA HDMI DVI, AC-IN w/ Built-in Power, Comply MIL-STD-810G Vibration and shock, Power comply MIL-STD-1275D. (Model: EMPM1500HBWWT)

IP66 Military Grade Rugged Panel Mount, 15" LCD monitor, 1024x768, LED-1000 nits, WV(170°/170°), WT(-15°C~65°C), VGA HDMI DVI, AC-IN w/ Built-in Power, Comply MIL-STD-810G Vibration and shock, Power comply MIL-STD-1275D. (Model: EMPM1500HBWWT)

Main Feature

  • Modular mechanism design provides flexible product configuration and easy maintenance.
  • Optional to built-in touch screen for interactive application.
  • Available with auto-brightness sensor offers application in day and night.
  • VGA connector with optional AV,SV,AV-Looping
  • Complete custom design/solution for OEM customers
  • Optional: MIL connector / M12 connector / Plastic IP66 water resistance connector
EMPM1500HBWWT
  • Overview
  • Download
  • Contact Sales
Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 M
Brightness / Contrast 1000 cd/m2 (typ) / 1500 : 1
Response Time < 35 ms
Viewing Angle (typical) H. 170o (- 85o ~ + 85o) , V. 170o(- 85o ~ + 85o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features   Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 20 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity -15oC ~ 65oC (5oF ~ 149oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity -30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 4 Kgs / 5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
