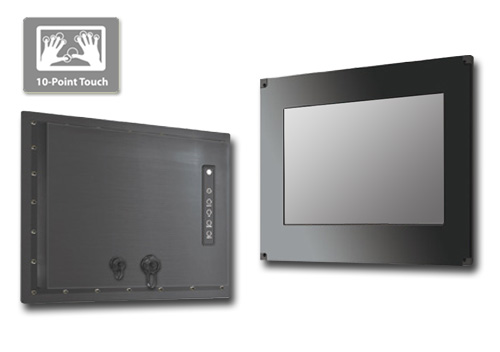

IP66 Flush Mount (OSD back) 10.4" LCD monitor, 1024 x 768, LED 350 nits, VGA input with 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: EFPM6-1040A-PCT10)

Modular mechanism design provides flexible product configuration and easy maintenance.
Optional to built-in touch screen for interactive application.
Available with auto-brightness sensor offers application in day and night.
IP66 Compliant
Able to protect against powerful water jets
Complete custom design/solution for OEM customers

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	4 : 3 / 10.4" viewable diagonal area
	Active Area / Pixel Pitch	210.4(H) x 157.8(V) mm / 0.2055(H) x 0.2055(V) mm
	Native Resolution / Colors	1024(H) x 768(V) / 16.2 M
	Brightness / Contrast	350 cd/m2 (typ) / 600 : 1
	Response Time	? 25 ms
	Viewing Angle (typical)	H. 178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o)
	Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio system	N/A
Input Terminals	1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power	External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption	Operation / Power Saving	22 watt , < 2 watt (Support DPMS)
Operating Condition	Temperature / Humidity	-30oC ~ 70oC (-22oF ~ 158oF) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	-30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	W x H x D = 330 x 265 x 73 mm
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	3.5 Kgs / 4.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
