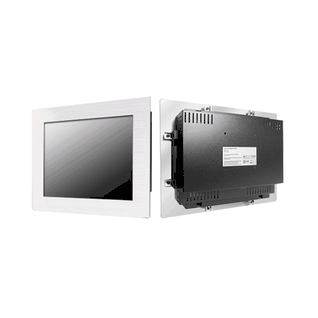

Panel PC IP65 front Stainless Panel Mount, 8.4" LCD monitor, 800 x 600, LED 350 nits, Intel Core i5 CPU, Dual Channel DDR4 SO-DIMM 2400 MHz, 2 x Display Port, 4 x USB, 2 x LAN (Model: EMCS8400-i5)
Panel PC IP65 front Stainless Panel Mount, 8.4" LCD monitor, 800 x 600, LED 350 nits, Intel Core i5 CPU, Dual Channel DDR4 SO-DIMM 2400 MHz, 2 x Display Port, 4 x USB, 2 x LAN (Model: EMCS8400-i5)
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Intel® Core i5 Processors
- Intel® 8th Gen (Whiskey lake-U)
- Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
- 2 x Display Port, 4 x USB, 2 x LAN
- IP65 front side sealed for water-dust proof
EMCS8400-i5
- Specifications
- Download
- Contact Sales
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
4 : 3 / 8.4" viewable diagonal area |
Active Area / Pixel Pitch |
170.4(H) x 127.8(V) mm / 0.213(H) x 0.213(V) mm |
Native Resolution / Colors |
800(H) x 600(V) / 262 K |
Brightness / Contrast |
350 cd/m2 (typ) / 600 : 1 |
Response Time |
? 30 ms |
Viewing Angle (typical) |
H. 160° (- 80° ~ + 80°) , V. 140° (- 70° ~ + 70°) |
Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
System |
CPU |
Intel® Core i5 Processors |
|
Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors |
System / Graphic Chipset |
SoC |
System Memory |
Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB |
HDD |
2 x SATA |
I/O port |
2 x Display port |
4 x USB 3.0 |
2 x LAN |
1 x Power |
Expansion |
N/A |
Power |
Power Input |
12V DC-IN (Lockable connector) |
Power Consumption |
43.68 Watt, |
Operating Condition |
Temperature / Humidity |
0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation) |
Dimensions |
Physical |
Please refer to Drawing |
Carton |
W x H x D = TBD |
Options |
Touch |
Video / TV |
Enhanced Panel |
Others |
Resistive touch |
SV + AV |
Panel with LED backlight |
Digital Signage(Stand alone) |
Capacitive touch |
SV + AV + AV_Looping |
High brightness panel |
Networking Digital Signage |
Infrared touch |
SV + AV + TV |
Wide Temperature |
Motion Sensor |
Protected glass |
|
Sunlight Readable |
Light Sensor |
|
|
|
Auto-Dimming |
