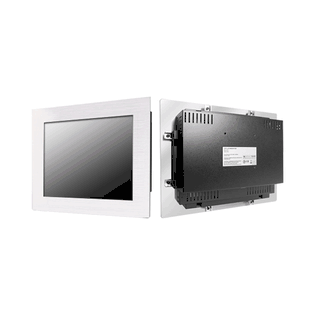

- Panel PC IP65 front Stainless Panel Mount, 19" LCD monitor, 1280 x 1024, LED 1000 nits, Wide Viewing Angle Intel Core i3, Intel H61, 2 x DDR3 SO-DIMM 1 x VGA,1 x HDMI, 2 x COM, 6 x USB2.0, 2 x LAN, 1 x PS2, Mic-in, Line-Out (Model: EMCS1900WTWVHB-i3)
Panel PC IP65 front Stainless Panel Mount, 19" LCD monitor, 1280 x 1024, LED 1000 nits, Wide Viewing Angle Intel Core i3, Intel H61, 2 x DDR3 SO-DIMM 1 x VGA,1 x HDMI, 2 x COM, 6 x USB2.0, 2 x LAN, 1 x PS2, Mic-in, Line-Out (Model: EMCS1900WTWVHB-i3)
Panel PC IP65 front Stainless Panel Mount, 19" LCD monitor, 1280 x 1024, LED 1000 nits, Wide Viewing Angle Intel Core i3, Intel H61, 2 x DDR3 SO-DIMM 1 x VGA,1 x HDMI, 2 x COM, 6 x USB2.0, 2 x LAN, 1 x PS2, Mic-in, Line-Out (Model: EMCS1900WTWVHB-i3)
EMCS1900WTWVHB-i3
- Specifications
- Download
- Contact Sales
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
4 : 3 / 19" viewable diagonal area |
Active Area / Pixel Pitch |
376.3(H) x 301.1(V) mm / 0.294(H) x 0.294(V) mm |
Native Resolution / Colors |
1280(H) x 1024(V) / 16.7 M |
Brightness / Contrast |
1000 cd/m2 (typ) / 1000 : 1 |
Response Time |
< 5 ms |
Viewing Angle (typical) |
H. 178° (- 89° ~ + 89°) , V. 160° (- 89° ~ + 89°) |
Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
System |
CPU |
Intel® Core i3 Processor |
BIOS |
UEFI |
System / Graphic Chipset |
Intel® HD Graphics (By CPU); Shared Memory |
System Memory |
2 x DDR3 1333/1600MHz SO-DIMM Slot (up to 16GB) |
HDD |
4 x SATA2 |
I/O port |
1 x VGA, 1 x HDMI |
2 x USB 2.0, 4 x USB 3.0 |
2 x COM (RS232/422/485) |
2 x LAN, Mic-in, Line-out |
Expansion |
1 x Mini PCI-e |
Power |
Power Input |
ATX PWR (24+4 pin) |
Power Consumption |
78 Watt, <1 Watt |
Operating Condition |
Temperature / Humidity |
-30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation) |
Dimensions |
Physical |
Please refer to Drawing |
Carton |
W x H x D = TBD |
Options |
Touch |
Video / TV |
Enhanced Panel |
Others |
Resistive touch |
SV + AV |
Panel with LED backlight |
Digital Signage(Stand alone) |
Capacitive touch |
SV + AV + AV_Looping |
High brightness panel |
Networking Digital Signage |
Infrared touch |
SV + AV + TV |
Wide Temperature |
Motion Sensor |
Protected glass |
|
Sunlight Readable |
Light Sensor |
|
|
|
Auto-Dimming |
