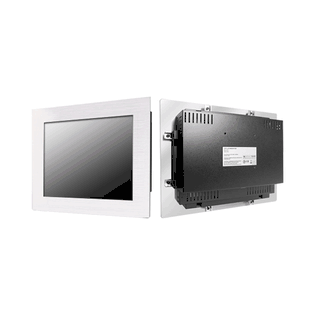

Panel PC IP65 front Stainless Panel Mount, 10.4" LCD monitor, 800 x 600, LED 1000 nits, Wide Temperature, Intel Core i7 CPU, Dual Channel DDR4 SO-DIMM 2400 MHz, 2 x Display Port, 4 x USB, 2 x LAN (Model: EMCS1040WTHB-i7)

Panel PC IP65 front Stainless Panel Mount, 10.4" LCD monitor, 800 x 600, LED 1000 nits, Wide Temperature, Intel Core i7 CPU, Dual Channel DDR4 SO-DIMM 2400 MHz, 2 x Display Port, 4 x USB, 2 x LAN (Model: EMCS1040WTHB-i7)

Panel PC IP65 front Stainless Panel Mount, 10.4" LCD monitor, 800 x 600, LED 1000 nits, Wide Temperature, Intel Core i7 CPU, Dual Channel DDR4 SO-DIMM 2400 MHz, 2 x Display Port, 4 x USB, 2 x LAN (Model: EMCS1040WTHB-i7)

Inquiry/Quote Request
EMCS1040WTHB-i7
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 211.2(H) x 158.4(V) mm / 0.264(H) x 0.264(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 1000 cd/m2 (typ) / 600 : 1
Response Time < 35 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80° ) , V. 120° (- 60° ~ + 60° )
Light Source LED backlight, Long life, 35,000 hrs (typ)
System CPU Intel Core i7 Processors
  Intel 8th Gen (Whiskey lake-U) Core™ MCP Processors
System / Graphic Chipset SoC
System Memory Supports Dual Channel DDR4 SO-DIMM 2400 MHz, up to 32GB
HDD 2 x SATA
I/O port 2 x Display port
4 x USB 3.0
2 x LAN
1 x Power
Expansion N/A
Power Power Input 12V DC-IN (Lockable connector)
Power Consumption 45 Watt, <1 Watt
Operating Condition Temperature / Humidity -30°C ~ 70°C (-22°F ~ 158°F) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
Infrared touch SV + AV + TV Wide Temperature Motion Sensor
Protected glass   Sunlight Readable Light Sensor
      Auto-Dimming
