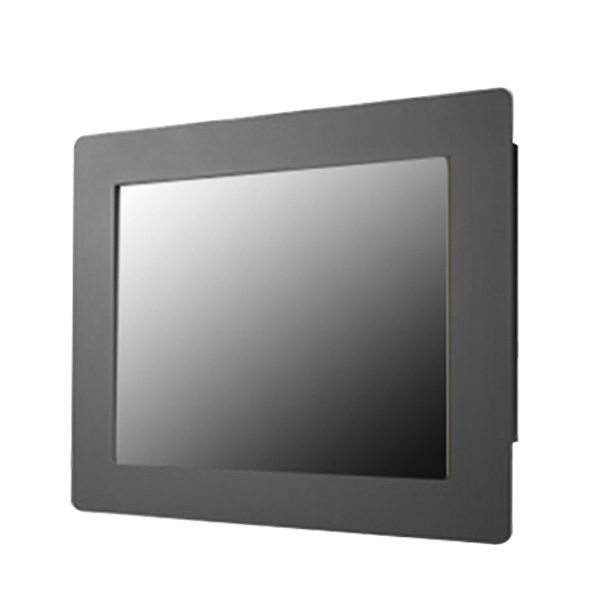

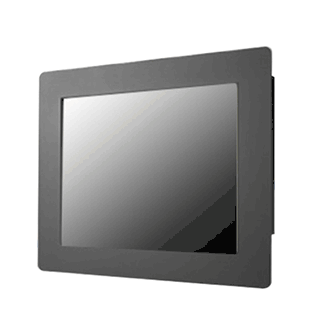

Military Panel Mount, 10.4" LCD monitor, 1024x768, LED-1000nits, VGA, 9~36V DC isolated PWR Compliance MIL-STD-810F (Vibration and Shock) Compliance MIL-STD-461G * NO TOUCH NO GLASS* (Model: EMPM1040XHB)

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
VGA connector with optional AV,SV,AV-Looping
Compliance MIL-STD-810F (Vibration and Shock)
Compliance MIL-STD-461G

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	4 : 3 / 10.4" viewable diagonal area
	Active Area / Pixel Pitch	210.4(H) x 157.8(V) mm / 0.2055(H) x 0.2055(V) mm
	Native Resolution / Colors	1024(H) x 768(V) / 16.2 M
	Brightness / Contrast	1000 cd/m2 (typ) / 600 : 1
	Response Time	< 25 ms
	Viewing Angle (typical)	H. 160° (- 80° ~ + 80°) , V. 140° (- 70° ~ + 70°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio System	2W speaker x 2
Input Terminals	1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	9~36V DC isolated PWR
Power Consumption	Operation / Power Saving	18 watt , < 2 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	Please refer to Drawing
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	3.5 Kgs / 4.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
