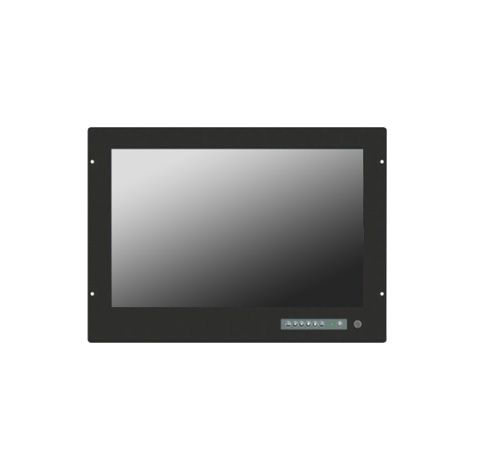

23.8" Front IP65 Wide Marine Bridge Display Monitor w/ HDMI, DVI, VGA, Composite Video, 100-240V + PCT Touch (Model: AMARW2380-PCT)
Front IP65 23.8" Wide Marine Bridge Display Monitor 1920x1080 250nits, HDMI, DVI, VGA, Composite Video, Audio Input, IEC60945 certificated Front hyper dimming knob control backlight brightness from nearly 0%-100% Internal Power Adapter, 100-240V AC Input+ PCT Touch Screen USB controller
AMARW2380-PCT
- Overview
- Specifications
- Download
| TFT Characteristics: |
| Screen Size |
23.8 inch wide TFT LCD |
| Backlight Type |
LED |
| Resolution |
1920x1080 |
| Contrast Ratio |
1000:1 |
| Brightness ( cd/m2 ) |
250 (high brightness 800 cd/m2 for option) |
| View Angles ( H/V ) |
178/178 |
| Max. Color |
16.2M |
|
| |
| Input Signals: |
| HDMI Signal |
HDMI (Female) |
| DVI Signal |
DVI-D (Female) |
| VGA Signal |
D-SUB 15P connector (Female) |
| Composite Video |
RCA Phono plug |
| Audio |
3.5" jack |
| AC Power Input |
Input Standard IEC Inlet |
| DC Power Input ( option ) |
Screw Terminal Block |
| Touch Screen |
USB-A or D-SUB 9P connector (Female) |
|
| |
| User Controls: |
| Power On/Off via front buttons |
| VR Brightness Knob adjustment |
| Power Mode Status LED indicator |
| On Screen Display control(OSD) |
|
| |
| Power Specifications: |
| AC Power Input |
Standard IEC Type power cord with Internal Power Adapter , 100-240V AC Input |
|
| |
| Mechanical and Environmental: |
| IP Protect |
Front IP65 Grade |
| Mounting |
Panel ( Flush ) Mount, VESA Mount, Robust Bracket, Sun-visor Bracket |
| Construction |
Alminum Front Bezel + Metal Housing |
| Operating Temperature |
0 - 50 deg. C |
| Operating Humidity |
5% - 95% ( non -condensing ) |
| Anti-Vibration |
5 - 500 Hz / 1 Grms PTP |
| Anti-Shock |
15G / Peak ( 11 ms ) |
| Physical Dimension (WxHxD) |
610 x 430 x 66mm |
| Packing Dimension (WxHxD) |
740 x 560 x 220mm |
| Net Weight / Gross Weight |
12 / 15.5 KG |
| Certification and Approvals |
CE / FCC / RoHs / IEC60945 |
|
