21.5" Front IP65 Marine Bridge Display Monitor w/ HDMI, VGA, DVI-D, Composite Video, Audio-In, IEC60945 (Model: AMARW2150)

Front IP65 21.5" Wide Marine Bridge Display Monitor 1920x1080 250nits, HDMI, VGA, DVI-D, Composite Video, Audio Input, IEC60945 Certificated Front Hyper Dimming Knob Control Backlight Brightness from nearly 0%-100% Internal Power Adapter , 100-240V AC Input

Front IP65 21.5" Wide Marine Bridge Display Monitor 1920x1080 250nits, HDMI, VGA, DVI-D, Composite Video, Audio Input, IEC60945 Certificated Front Hyper Dimming Knob Control Backlight Brightness from nearly 0%-100% Internal Power Adapter , 100-240V AC Input

Inquiry/Quote Request
AMARW2150
  • Overview
  • Specifications
  • Download

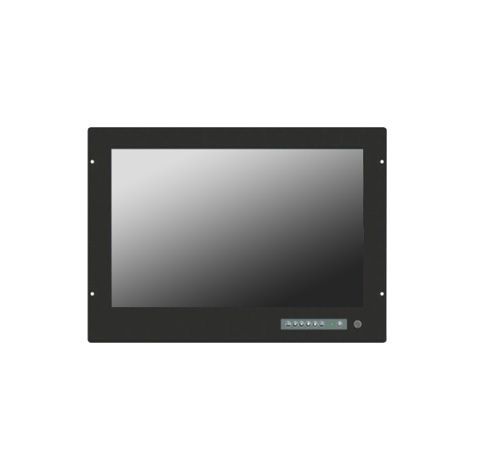

The IP65 marine LCD Display AMARW2150 from iTech is engineered to deliver reliable, rugged performance in demanding maritime and offshore environments. With a sealed front-panel housing that meets IP65/NEMA4 protection standards, this display resists water, dust, oil and corrosive salt-air, making it ideal for ship bridges, control rooms, navigation consoles, offshore platforms, or industrial vessels. The AMARW2150 features a high-quality LED-backlit widescreen panel, multiple video input options (HDMI, VGA, composite, audio), built-in stereo speakers, and optional touch-screen or protective glass - all designed to maintain clear visibility and dependable operation even under harsh marine conditions. For applications requiring sunlight readability, vibration/shock resilience, and flexible mounting (panel flush, VESA, or robust bracket), this marine-grade display is a robust and versatile solution.


Features:
  • Front hyper-dimming knob allows backlight adjustment from nearly 0% to 100%.
  • Rugged construction with front bezel compliant with NEMA 4 / IP65 standards.
  • Front hardened glass protects the screen (AR glass with touch capability).
  • Front OSD control buttons for optimized display settings.
  • Built-in 2 x 2W stereo speakers.
  • Standard connectivity includes HDMI, DVI, VGA, Composite Video, and Audio inputs.
  • Flush panel mount with secure mounting clips.
  • Compatible with standard VESA mount; optional robust mounting bracket available.
  • IEC 60945 certified.
TFT Characteristics:
Screen Size 21.5 inch wide TFT LCD
Backlight Type LED
Resolution 1920x1080
Contrast Ratio 3000:1
Brightness ( cd/m2 ) 250 (high brightness 800 cd/m2 for option)
View Angles ( H/V ) 178/178
Max. Color 16.2M

Input Signals:
HDMI Signal HDMI (Female)
DVI  Signal DVI-D (Female)
VGA Signal D-SUB 15P connector (Female)
Composite Video RCA Phono plug
Audio 3.5" jack
AC Power Input Input Standard IEC Inlet
DC Power Input ( option ) Screw Terminal Block
Touch Screen USB-A or D-SUB 9P connector (Female)

User Controls:
Power On/Off via front buttons
VR Brightness Knob adjustment
Power Mode Status LED indicator
On Screen Display control(OSD)

Power Specifications:
AC Power Input Standard IEC Type power cord with Internal Power Adapter , 100-240V AC Input

Mechanical and Environmental:
IP Protect Front IP65 Grade
Mounting Panel ( Flush ) Mount, VESA Mount, Robust Bracket, Sun-visor Bracket
Construction Alminum Front Bezel + Metal Housing
Operating Temperature 0 - 50 deg. C
Operating Humidity 5% - 95% ( non -condensing )
Anti-Vibration 5 - 500 Hz / 1 Grms PTP
Anti-Shock 15G / Peak ( 11 ms )
Physical Dimension (WxHxD) 565 x 405 x 66mm
Packing Dimension (WxHxD) 700 x 540 x 220mm
Net Weight / Gross Weight 11 / 14.5 KG
Certification and Approvals CE / FCC / RoHs / IEC60945
