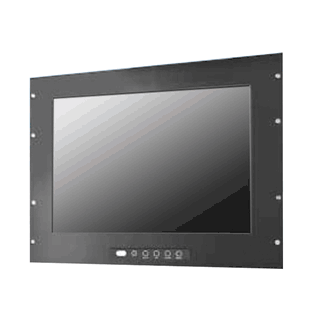

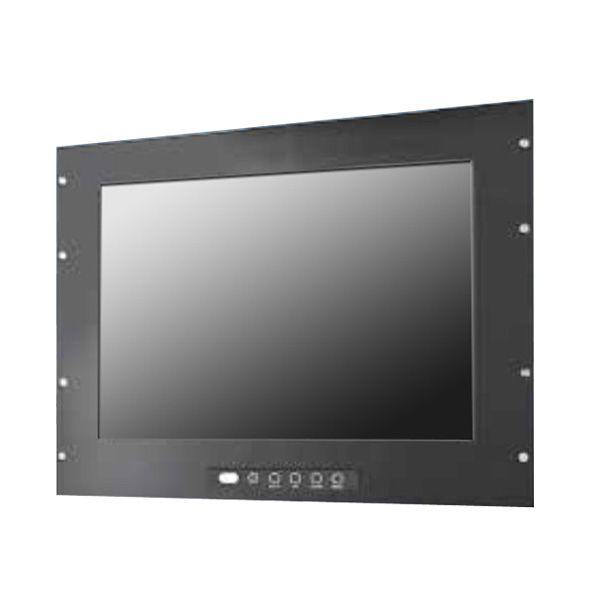

17.3" IP65 Front Rackmount LCD Monitor w/ connector VGA MIL 38999, DVI MIL 38999, Power MIL 38999 (Model: EMRW1730-EMI)

IP65 front rack mount, 17.3" LCD Monitor, 1920x1080, LED-300nits EMI mesh with connector VGA MIL 38999, DVI MIL 38999 and Power MIL 38999, temp -20°C to + 60°C

IP65 front rack mount, 17.3" LCD Monitor, 1920x1080, LED-300nits EMI mesh with connector VGA MIL 38999, DVI MIL 38999 and Power MIL 38999, temp -20°C to + 60°C

Inquiry/Quote Request
EMRW1730-EMI
  • Specifications
  • Download
  • Contact Sales
Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 17.3" viewable diagonal area
Active Area / Pixel Pitch 381.888(H) x 214.812(V) mm / 0.1989(H) x 0.1989(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 262 K
Brightness / Contrast 300 cd/m
2
(typ)  /  400 : 1
300 cd/m
2
(typ)  /  400 : 1
300 cd/m2 (typ)  /  400 : 1
Response Time ? 8 ms
Viewing Angle (typical) H.90° (- 45° ~ + 45°)  ,  V. 50°(- 30° ~ + 20°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals MIL connector 38999: VGA+DVI+Power, 1 x PC  Audio (Stereo Headphone Jack)
Convenient Features   Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 15 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity -20oC ~ 55oC (-4oF ~ 131oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 12 Kgs / 13.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ

TBD (Sets , By pallet)



Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
