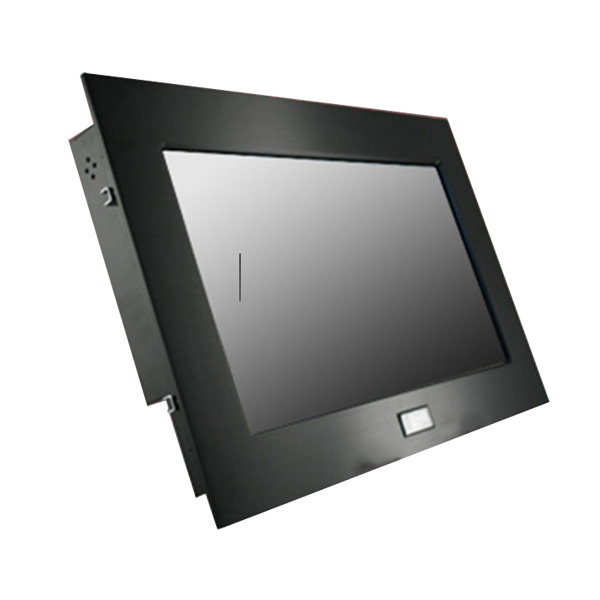

Panel Mount (Metal-5mm), 24" LCD Monitor 1920x1080, 300nits, VGA+DVI+HDMI, Side OSD, including rear screw/Clamp/VESA Mount (MODEL: EPMW2400HD)

Panel Mount (Metal-5mm), 24" LCD Monitor 1920x1080, 300nits, VGA+DVI+HDMI, Side OSD, including rear screw/Clamp/VESA Mount (MODEL: EPMW2400HD)

Panel Mount (Metal-5mm), 24" LCD Monitor 1920x1080, 300nits, VGA+DVI+HDMI, Side OSD, including rear screw/Clamp/VESA Mount (MODEL: EPMW2400HD)

Main Feature

  • Modular construction for more flexibility in terms of product configuration as well easy maintenance
  • A brightness sensor for auto adjustment of the screen so that its neither too bright nor too dark
  • Robust aluminum housing to withstand rugged applications
  • Optional build-in touch screen functionality for an interactive application
  • Optional protective glass to keep dust, dirt, and moisture away from the display
  • Standard VGA connector but also available with optional AV, SV, and AV-Looping
  • Energy-efficient based on advance power management
  • Customizable design available upon request for Open frame/Panel mount/Stainless steel OEM customers
EPMW2400HD-
  • Specifications
  • Download
  • Contact Sales
Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 24" viewable diagonal area
Active Area / Pixel Pitch 531.36(H) x 298.89(V) mm / 0.2768(H) x 0.2768(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 16.7M
Brightness / Contrast 300 cd/m2 (typ) / 1000 : 1
Response Time ? 5 ms
Viewing Angle (typical) H.170° (- 85° ~ + 85°) , V. 160° (- 80° ~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features   Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 61.25 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 4.5 Kgs / 5.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ   TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
