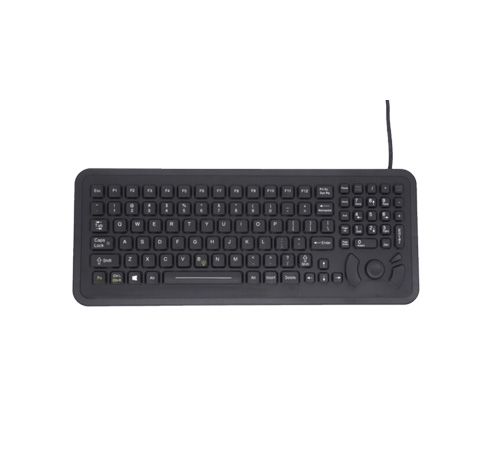

Panel Mount Keyboard with Force Sensing Resistor and Backlighting (Model: SLP-102)
- Overview
- Specifications
- Download
| The SLP-102 Industrial Panel Mount Keyboard is engineered for durability and precision in demanding environments. Designed with a tough ABS polycarbonate frame and industrial-grade silicone rubber keypad, this keyboard offers a cleanable, liquid-proof surface ideal for industrial and medical settings. Featuring red LED backlit keys and an integrated Force Sensing Resistor (FSR) pointing device, the SLP-102 ensures both visibility and control in low-light and rugged conditions. Available in both PS/2 and USB configurations, it provides flexible connectivity to suit a wide range of applications. |
Features: |
|
| CERTIFICATIONS | NEMA 4X UL60950, FCC Part 15 Class B |
| SHOCK | 3x11 ns pulses of 50g on each of 3 axes |
| CABLE | LENGTH: 10' straight (3 m) DESIGN: "Y" PS/2 or USB Cable |
| KEY SWITCH | MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap |
| VIBRATION | POWER SPECTRAL DENSITY: .04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
| POWER | PS2: KEYBOARD: 210mA@5V (from Keyboard port) POINTER: 35mA@5V (from Mouse port) USB: 245mA@5V (from CPU port) |
| COMPATIBILITY | PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS |
| TEMPERATURE RANGE | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F) |
| WEIGHT | 1.50 lbs +/-0.10 lbs (0.68 kg +/-0.05kg) |
| WARRANTY | 1 Year Limited Warranty |
| HUMIDITY | 100% Humidity Resistant |
| DIMENSIONS | 15.10" x 6.05" x 1.22" (l-w-d) 383.5mm x 153.7mm x 31.0mm SCREWS: 0.50 (12.7mm) CUTOUT: 13.70" X 4.65" (w-h) 348mm x 118.1mm |
