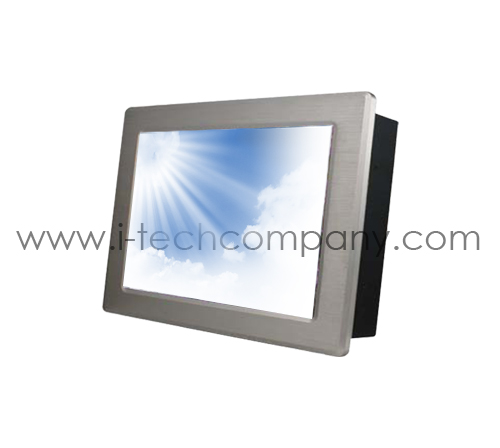

7" IP65/NEMA4 Wide Temp Panel Mount (Aluminum-6mm) LCD Monitor 1000nits, VGA Input, Rear OSD (Model: YPMW0700PHBWT)
IP65/NEMA4 Wide Temp Panel Mount (Aluminum-6mm) Wide 7" LCD monitor, 800*480, 1000nits LED, VGA Input, Rear OSD including rear Clamp mount
Main Feature
- High contrast color TFT-LCD Monitor support resolution up to 800*480.
- Power management system conforms to VESA DPMS and EPA Energy Star standards.
- Full consideration for touch screen installation and application.
- Universal Power adapter.
X
Inquiry/Quote Request
- Specifications
- Download
| Panel Type | 7-inch TFT LCD |
| Screen Diagonal | 7-inch |
| Active Display Area (mm) | 152.40 (H) x 91.44 (V) |
| Pixel Pitch (mm) | 0.1905 x 0.1905 |
| Number of Pixels | 800 * 480 |
| Contrast Ratio | 750:1 |
| Color Arrangement | R.G.B. Vertical Stripe |
| Brightness (cd/m˛) | 1000 cd/m˛ |
| Viewing Angle(Typ.) | 80/80/80/80 (R/L/U/D) |
| Signal Connector | 15 PIN D-Sub |
| Power Source | AC100 ~ 240V, Universal +/- 10% |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -30 ~ +80°C |
| Storage Temperature | -30 ~ +80°C |
| Plug & Play | VESA DDC 1/2B |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
