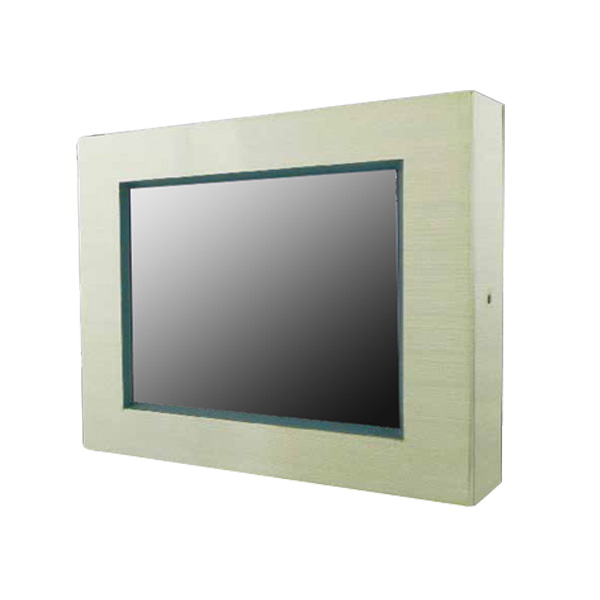

High Brightness Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 8.4" Brightness 1000 nits based on Default 3 set waterproof connectors Waterproof connectors & cables: DVI,VGA & Power 6ft long only with external 100~240V AC + adapter Wide Temp -30 to 85C Operating Temp (MODEL: CCH0840HB-SIP)

High Contrast color TFT LCD Monitor support resolution up to (800 x 600)
Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance

Viewable Size Image	8.4"
Active Display Area(mm)	170.4 (H) x 127.8 (V)
Pixel Pitch(mm)	0.213 (H) x 0.213 (V)
Number of Pixels	800x600
Contrast Ratio	600:1 (typ.)
Display Color	16.2M
Brightness(cd/m 2 )	1000 (typ.)
Viewing Angle(CR>=10)	-80~80(H);-60~80(V)
Synchronization Range Horizontal/Vertical	31.5~46.9KHz / 60~75Hz
Recommended Resolution	800x600@60Hz, 75Hz
Signal Connector	D-Sub 15pin
I/O	3 pin Power cable(IP65 connector); 10 pin VGA cable (IP65 connector); DVI (IP65 connectors); USB cable for Touch (IP65 connector) Optional for RS232 for touch (IP65 connector)
Power Source	12V DC in, with External AC to DC Adapter (100~240 VC)
Power Consumption	25W typical, normal operation
Power Management	VESA DPMS Compliant
Plug & Play	VESA DDC 1/2B
Optional Touch Screen	Resistive and PCAP Touch
Optional video	Yes
Optional Optical bonding	For Moisture Prevention
	CNS	JIS	ASTM	AISI	DIM
Stainless Material	304	SUS304	S30400	304	1.4301
