Intel® Atom SoC E3825 CPU In-Vehicle Computer 1 x DDR3L SODIMM, Mini-PCIe x3, USB 3.0 host x 1, USB 2.0 host x1 Serial port x2, Optional CAN Bus x1 DC Power input +9~36Vdc with Ignition (Model: LPC-V2G-A2-V2)

Intel® Atom SoC E3825 CPU In-Vehicle Computer 1 x DDR3L SODIMM, Mini-PCIe x3, USB 3.0 host x 1, USB 2.0 host x1 Serial port x2, Optional CAN Bus x1 DC Power input +9~36Vdc with Ignition (Model: LPC-V2G-A2-V2)

Intel® Atom SoC E3825 CPU In-Vehicle Computer 1 x DDR3L SODIMM, Mini-PCIe x3, USB 3.0 host x 1, USB 2.0 host x1 Serial port x2, Optional CAN Bus x1 DC Power input +9~36Vdc with Ignition (Model: LPC-V2G-A2-V2)

Main Feature

  • Compact fanless vehicle computer with Intel® Atom™ E3825 or E3845 CPU
  • 1 x DDR3L SODIMM max up to 8 GB memory
  • 2 x Intel® 10/100/1000 Mbps RJ-45 ports
  • 3 x mini-PCIe slots with total 4 external accessible SIM slots support Wi-Fi/3G/4G(LTE)
  • Compliant with MIL-STD-810G vibration/shock resistance
  • Onboard GPS receiver module and G-sensor
Inquiry/Quote Request
LPC-V2G-A2-V2
  • Overview
  • Specifications
  • Download
  • Contact Sales

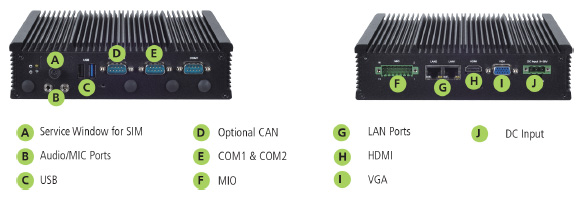

Product I/O View

Processor System
CPU Intel® Atom SoC E3825 or E3845 CPU
Frequency 1.33 or 1.91 GHz
Core Number Sockets 2 or 4
BIOS AMI SPI Flash BIOS
Chipset N/A (SoC)
Fanless
Yes
Memory
Technology DDR3L SODIMM x 1
Max. Capacity Max Up to 8 GB
Graphic
Controller Intel HD Graphics
VGA VGA x 1, HDMI x1
Ethernet
Controller 2 x Intel® i210-IT
Speed 10/100/1000 Mbps
Interface 2 x RJ45
Storage
Type 1 x SATA 2.0, 1 x mSATA
Installation 1 x Internal 2.5” 9.5 mm drive bay
I/O
Serial Port COM1/COM2: 2 x RS-232/422/485 with
RI/5V/12V
USB 1 x USB 3.0 type A, 1 x USB 2.0 type A
CAN Bus Optional support J1939 / J1708 on COM3
port
GPS/G-sensor u-blox NEO-7N / ADXL 345
Expansion 2x Full-size mini-PCIexpress socket (1x
USB+PCIe+2x SIM; 1x USB+2 x SIM )
1x half-size mini-PCIexpress socket
( USB+PCIe)
Hardware Monitoring
Fintek F81865 integrated watchdog timer 1~255 level
Power
Power Input 3-pin terminal block (+,-,ignition),
+9~36VDC, ATX mode support ignition
delay on/ off control
Power Output 12V/1A DC out
Power Adaptor Optional
Environment
Operating Temperature – Industrial -20°C~60°C
Operating Temperature - Commercial -5~45°C
Relative Humidity 5%~95% (Non-condensing)
Mechanical
Dimension (W x H x D) 198 x 52 x 185 mm
Construction Heavy Steel
Weight 1.8 kg
Mounting Wall mount
Driver Support
Microsoft Windows WES7 (WS7E) /W7 Pro SP1 / WE8 STD
/WIN 10 IOT/ WIN 10 IOT Retail and TC
Linux Redhat Enterprise 5, Fedora 14, Linux
Kernel
Certification
EMC CE/FCC Class A, E13, RoHS
Compliance
Vibration/Shock Vibration: MIL-STD-810G, Method 514.6
Shock: MIL-STD-810G, Method 516.6


Standard Accessories

SATA SSD/HDD Cable with Power
Metal Brkt Black Wallmount-4
