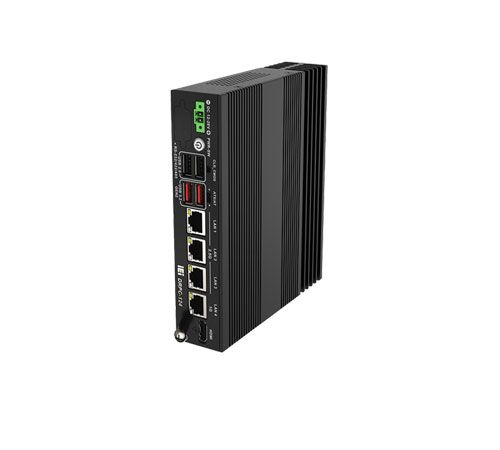

Fanless System w/ Intel Celeron J6412, 4x2.5GbE LAN, 1xHDMI, 1xRS232/422/485, 8GB Memory, 12-28V DC, RoHS (Model: IEPC-400)

Fanless System with Intel® Celeron® J6412 up to 2.6GHz TDP 10W, 4x 2.5GbE Lan, 1 x HDMI, 1 x RS232/422/485, 8GB Memory, 12-28V DC, RoHS

Fanless System with Intel® Celeron® J6412 up to 2.6GHz TDP 10W, 4x 2.5GbE Lan, 1 x HDMI, 1 x RS232/422/485, 8GB Memory, 12-28V DC, RoHS

Inquiry/Quote Request
IEPC-400
  • Overview
  • Specifications
  • Download
The IEPC-400 from iTech is a compact and reliable fanless industrial mini PC designed for space-saving and high-performance industrial applications. Built with an Intel® Celeron® J6412 quad-core processor, this embedded system delivers efficient computing power with low heat output. Featuring four GbE LAN ports and DIN-rail mounting, the IEPC-400 ensures stable connectivity and easy integration into automation, control, and monitoring environments. Its CE/FCC compliance guarantees dependable operation in industrial settings that demand continuous performance and durability.


Features:
  • Compact industrial mini PC
  • Fanless design for silent and reliable operation
  • Powered by Intel® Celeron® J6412 processor (2.0 GHz, up to 2.6 GHz, quad-core, 10W TDP)
  • Equipped with four GbE LAN ports
  • CE and FCC certified
Form factor
SBC Form Factor
Supported CPU: Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
Chipset: SoC
System Memory: LPDDR4x on board 8GB (MAX 16GB)
Power: 2-pin Terminal block: 12-28V DC
Consumption: 12V@3.05 (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
USB: 2 x USB 3.2 Gen2
2 x USB 2.0
Ethernet: 1 x GbE by Intel® I210-AT controller
3 x 2.5 GbE by Intel® I225-V/I226-V controller
Display: 1 x HDMI™ 1.4B
COM Port: 1x RS-232/422/485 (DB9)(Optional)
TPM: Support Intel PTT
Watchdog Timer: Programmable 1 ~ 255 sec/min
Expansion Slots
M.2: 1 x 2242 B-key (PCIe Gen3 x2)
1 x 2242 B-key (SATA)
1 x 2280 M-key (PCIe Gen3 x2)

System
Cooling method / System Fan Fanless
Drive Bays eMMC 5.1 (Optional)
Indicator & Buttons
Buttons 1 x Power button
1 x Clear CMOS
Indicators 1 x Power LED
Physical Characteristics
Construction Extruded aluminum alloy
Color Black
Dimensions 159 x 132.5 x 35 (mm)
Weight 0.78KG /1.2kg
Environment
Operating Temperature -10°C ~ 50°C with 0.7M/S air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration 10-500 Hz,1.04 Grms, random, 1 hr/axis
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis
Safety & EMC CE, FCC, UKCA
OS Support Microsoft® Windows® 10/11, Linux
