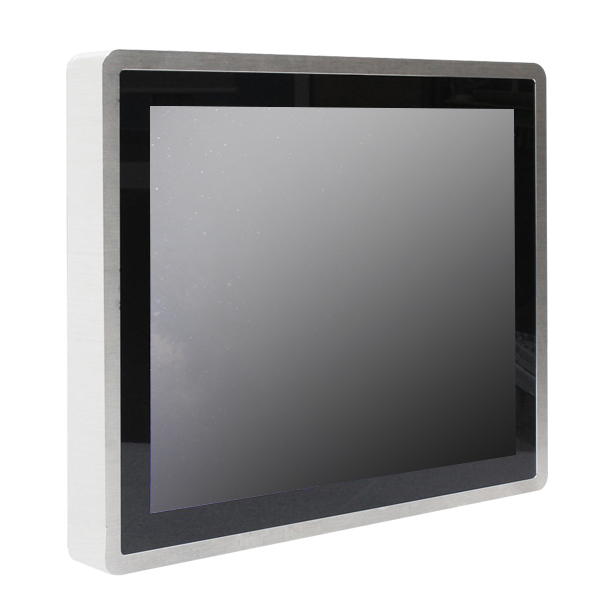

Fanless 12" Fully IP66 Aluminum chassis Panel PC with true flat 5W Res T/S, i3 7100U , 2 x USB , 2 x RS232 2 x GLAN , 1 x 12V DC in PW, VESA 100 x 100, Res : 800 x 600 dpi (Model: KAP1210-i3-FTR)

Fanless 12" Fully IP66 Aluminum chassis Panel PC with true flat 5W Res T/S, i3 7100U , 2 x USB , 2 x RS232 2 x GLAN , 1 x 12V DC in PW, VESA 100 x 100, Res : 800 x 600 dpi (Model: KAP1210-i3-FTR)

Fanless 12" Fully IP66 Aluminum chassis Panel PC with true flat 5W Res T/S, i3 7100U , 2 x USB , 2 x RS232 2 x GLAN , 1 x 12V DC in PW, VESA 100 x 100, Res : 800 x 600 dpi (Model: KAP1210-i3-FTR)

Main Feature

  • Fanless design and compact solution
  • Intel Core i3 CPU
  • Resolution 800 x 600 &1024 x 768 dpi
  • True Flat 5W / PCAP touch solution
  • Aluminum Full IP66 compliant 6-sided with hairy brush
  • Waterproof connectors
  • 2 x USB, 2 x RS232, 2 x GLAN
  • Vesa Mounting
Inquiry/Quote Request
KAP1210-i3-FTR
  • Specifications
  • Download
  • Contact Sales
System
CPU Intel Core i3 7100U (On Board)
Memory 1 x 260-pin DDR4 133MHz SODIMM up to 16 GB
H/W Monitor
Watchdog Timer 256-Level Watchdog Timer
I/O Ports
RS232 2
GLAN 2
USB 2
Storage
Storage 1 x SATA 2.0 2.5” HDD/SSD
Expansion
Mini-PCIe 1 x Full-size (one w/ mSATA);
1 x Full-size (one w / nano sim)
Power Requirement
Power Input Voltage DC in 12~24V (Auto Power On)
Touch Screen
Touch screen 5-wire resistive
OS support
Win Pro 7,8,10 ; Embedded Win 7, 8,10

Display
Size 12.1" TFT (4:3)
Resolution 800 x 600
Colors 16.2M
Luminance ( cd/m2) 400
Contrast Ratio 600:1
View Angle ( H / V ) 160 / 130
Mechanical & Environmental
Construction Full IP67 Aluminum Chassis
Operation Temp 0 ~ 50°C
Storage Humidity 10 ~ 90%, non-condensing
Mount VESA mounting(75X75mm)
Dimension
(W x H x D mm) &Weight 		TBD
Optional
HDMI 2
Full IP67 Power Adaptor 1
No Touch Screen 1

Optional High Brightness Panel
Resolution 800 x 600 800 x 600 800 x 600 1024 x 768
Color 262K 16.2M 16.2M 16.2M
Luminance(cd/m2) 1000 2000 1600 1000
Contrast Ratio 1000 : 1 400:1 400:1 800:1
Viewing Angle (H/V°) 178/178 130/110 130/110 176/176
