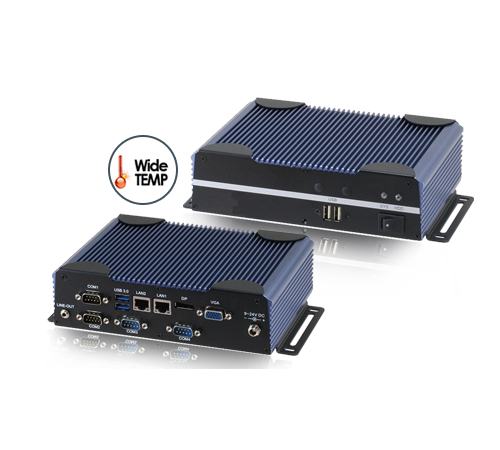

Fanless Embedded Box PC with 5th Generation Intel Core i3 Processor SoC (Model: APC6600WT-i3)

System
CPU	Intel 5th Generation Core i3-5010U, 2.1 GHz
Chipset	Intel System on Chip
System Memory	DDR3L 1600 SODIMM slot x 1, up to 8 GB
Display Interface	VGA, DP
Storage Device	mSATA, HDD/SSD
Ethernet	Intel® WGI211AT, 10/100/1000Base-TX x 1 Intel® WGI218LM, 10/100/1000Base-TX x 1
I/O	RS-232/422/485 x 2 RS-232 x 2 USB 2.0 x 2 (A2M) USB 3.0 x 2 VGA x 1 DP x 1 Line-out x 1 LAN x 2 Antenna holes x 2 Power switch Power input
Expansion	Full-size Mini-Card and SIM slot x 1 (optional for mSATA) Half-size Mini-Card x 1
Indicator	Power LED HDD active LED
OS support	Windows® 10 (64 bit), Windows® 8.1(32/64-bit), Windows® 7(32/64-bit), Linux Ubuntu 14.10
Power Supply
Power Requirement	9 - 24V with lockable DC jack
Mechanical
Mounting	Wallmount
Dimensions (W x H x D)	7.76" x 2.17" x 5.63" (197mm x 55mm x 143mm)
Gross Weight	-
Net Weight	3.3 lb (1.5 kg)

Environmental
Operating Temperature	-20°C ~ 60°C with wide temperature HDD (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
Storage Temperature	-45°C ~ 80°C
Storage Humidity	95% @ 40°C, non-condensing
Anti-Vibration	5 Grms/ 5 ~ 500Hz/ operation mSATA / SSD 1 Grms/ 5~ 500Hz/ operation HDD
Certification	CE/FCC class A
