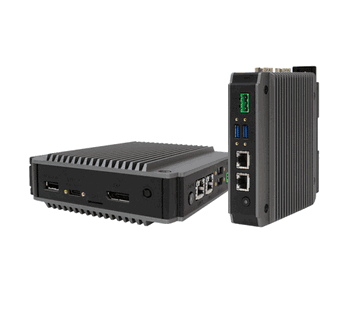

Fanless Box PC with Intel N3350/4200 CPU, 1 x SO-DIMM up to 8GB memory, USB Type-C support, 1 x Display port, 2 x USB3, 2 x LAN, 1 x mSATA, 1 x SD, 1 x mini PCIe for Wi-Fi/GPS/LTE, I/O Expansion modules, Wide range DC 9~36V power input (Model: APC300TT)

Fanless Box PC with Intel N3350/4200 CPU, 1 x SO-DIMM up to 8GB memory, USB Type-C support, 1 x Display port, 2 x USB3, 2 x LAN, 1 x mSATA, 1 x SD, 1 x mini PCIe for Wi-Fi/GPS/LTE, I/O Expansion modules, Wide range DC 9~36V power input (Model: APC300TT)

Fanless Box PC with Intel N3350/4200 CPU, 1 x SO-DIMM up to 8GB memory, USB Type-C support, 1 x Display port, 2 x USB3, 2 x LAN, 1 x mSATA, 1 x SD, 1 x mini PCIe for Wi-Fi/GPS/LTE, I/O Expansion modules, Wide range DC 9~36V power input (Model: APC300TT)

Main Feature

    • Intel N3350/4200 CPU
    • 1 x SO-DIMM up to 8GB memory
    • USB Type-C support
    • 1 x Display port
    • 2 x USB3, 2 x LAN
    • 1 x mSATA, 1 x SD
    • 1 x mini PCIe for Wi-Fi/GPS/LTE
    • I/O Expansion modules
    • Wide range DC 9~36V power input
APC300TT
  • Specifications
  • Download
  • Contact Sales
SYSTEM
CPU Intel N3350 (Dual-core), N4200 (Quad-core)
System Chipset SoC
System Memory 1 x 204 pin SO-DIMM DDR3L up to 8GB
I/O Interface
Ethernet 2 x GbE
USB 1 x USB2, 2 x USB3 (with lock), 1 x USB3 Type-C (ALT mode)
STORAGE Space
Storage 1 x mSATA socket (SATA3) for faster OS access
1 x SD socket for compact and removable storage
DISPLAY
Video 1 x DP 1.2
Expansion


Expansion
1 x full-size mPCIe, 1 x micro-SIM socket
Option 1: 2 x COM (DB9)
Option 2: 3 x COM (Terminal Block)
Option 3: 2 x USB2
Option 4: 16 x DIO (Terminal Block)
POWER
Power Button 1 x power button with LED light
Power Input DC 9~36V
Power Connector 1 x 3-pin connector
MECHANICAL
Mounting DIN-rail and Wall-mount support
Dimensions 140 x 120 x 42 mm
Net Weight 0.78 kg
ENVIRONMENTAL
Operating Temperature 0~50C / -20~60C (option)
Storage Temperature -40~85 C
Storage Humidity 10~90% @40 C non-condensing
Certificate CE / FCC Class A
OPERATING SYSTEM SUPPORT
Win10 IoT, Linux 4.20.2
