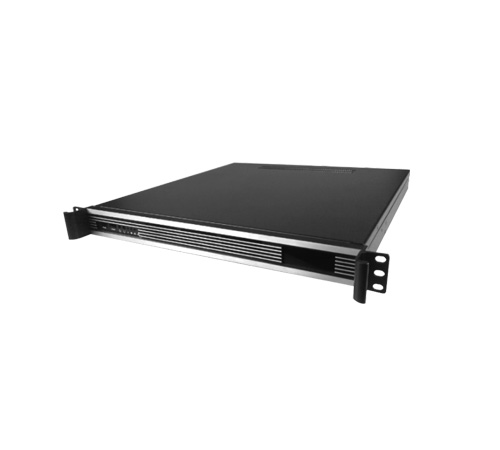

Fanless 1U Rack Mount Barebone System Intel J1900, 2 xGLAN, 12V DC in External Power Adapter (Model: KRM1U190-2)

Fanless 1U Rack Mount Barebone System Intel J1900, 2 xGLAN, 12V DC in External Power Adapter

Fanless 1U Rack Mount Barebone System Intel J1900, 2 xGLAN, 12V DC in External Power Adapter

KRM1U190-2
  • Overview
  • Specifications
  • Download

Features:

  • Fanless and rugged design
  • Intel Bay Trail D-J1900 2.0GHz Quad Core Processor
  • 2 x GLAN, 4 x USB
  • 1 x HDMI ,1 x VGA
  • 1 x Mini PCI e slot
System
CPU Intel Bay Trail D-J1900 2.0GHz Quad Core Processor
CPU Type 1 x 204-pin DDR3L SODIMM up to 8 GB
Chipset Intel H310 Express
I/O Ports
Audio 1 x Line out , 1 x MIC in , 1 x Line in
USB 4 x USB 2.0
GLAN 2 x Intel i210-AT GbE LAN
RS232 1
RS232/422/485 1
HDMI 1
VGA 1
Storage
Storage 1 x SATA 2.0 2.5" HDD/SSD
Expansion slot
Mini PCI e Slot 1 x Full size w / mSATA
Power Requirement
DC Input 3 Pin power terminal block for DC in 12V or 24V external power adapter
OS support
OS support Window 7 / window 8 / window 10 / window 10 IoT
Mechanical & Environmental
Mounting 1U Rackmount
Operation Temp. 0 ~ 45°C
Storage Humidity 10 ~ 90%, non-condensing
Dimension (W x H x D) 428 x 450 x 44.4 mm
Weight 6.8 kg
