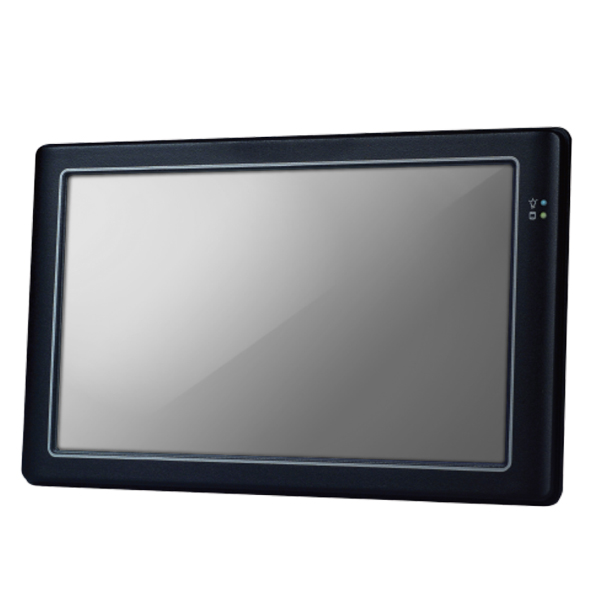

9" Panel PC DMP 933MHz-1GHz, 2GB Memory, IP65 Front w/ +24VDC and Windows Embedded Standard (Model: XPC0900X4-2G)

9.0" 1024 x 600 300nits Panel PC DM&P Processor 933MHz-1GHz Onboard, 2GB DDR3 Memory on board, +24VDC, IP65 standard front panel, waterproof and dustproof, and wide operating temperature range from -20C to 60C (-4F to 140F) RS232/422/485 x 2, USB 2.0 x 3, CF Card Support, 2 Serials Ports available, support Linux, Win CE, Win XP, Win 7, Windows Embedded Standard

9.0" 1024 x 600 300nits Panel PC DM&P Processor 933MHz-1GHz Onboard, 2GB DDR3 Memory on board, +24VDC, IP65 standard front panel, waterproof and dustproof, and wide operating temperature range from -20C to 60C (-4F to 140F) RS232/422/485 x 2, USB 2.0 x 3, CF Card Support, 2 Serials Ports available, support Linux, Win CE, Win XP, Win 7, Windows Embedded Standard

Main Feature

  • 9" TFT LCD with resistive touchscreen
  • DM&P Processor 933MHz/1 GHz Onboard
  • 512 /1GB/2 GB System Memory Onboard
  • Compact Flash Type I/II SD Slots /SATA Slim
  • Fanless and Low Power Consumption
  • Metal Chassis with Compact Design
Inquiry/Quote Request
XPC0900X4-2G
  • Specifications
  • Download
  • Contact Sales
LCD Display
Type WSVGA TFT LCD
Size 9”
Resolution (Pixel) 1024x600
Colors 262,144
View Angle Vertical 120° / Horizontal 140°
Brightness 300 cd/m2
Backlight Life 18,000 hrs
Contrast Ratio 500 : 1
System Specs
CPU DM&P Vortex86DX-933MHz / Vortex86DX3- 1GHz
Cache L1: 16KB I-Cache, 16KB D- Cache / L 2: 256KB Cache
L1: 32KB I-Cache, 32KB D- Cache / L 2: 152KB Cache
Memory 512MB /1GB / 2GB  DDR2 (DDR3) Memory Onboard
Watchdog Timer Software Programmable from 30.5u to 512 Seconds x 2 Sets
Serial Port RS-232 / 422 / 485 x 1
USB Ports USB Ports (Version 2.0) x 3
Ethernet Integrated 10/100M Ethernet (PoE Optional) / Giga Ehternet (Optional)
Audio HD Audio-Realtek ALC262 CODEC
Internal Drives Compact Flash Type l/ll Slot, SD Slot (optional), SATA Slim
Touch Screen Type Analog Resistive
Expansion S lot WLAN Optional
Power Requirement + 12-+24VDC
Power Consumption +24VDC@1A
Operating Temperature 0-+50 C (+32- +122°F)/-20( C~+60°C (-4~+140 F)
Storage Temperature -30-+70  C(-22~+158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing
Operating System Linux, Win CE, Win XP, Win 7, Windows Embedded Standard
Dimensions 242x156.5x44mm (9.68"x6.26"xl.76")
Weight 1.36 kg
Certificate CE, FCC, VCCI, Vibration, IP65 (Front Panel)
